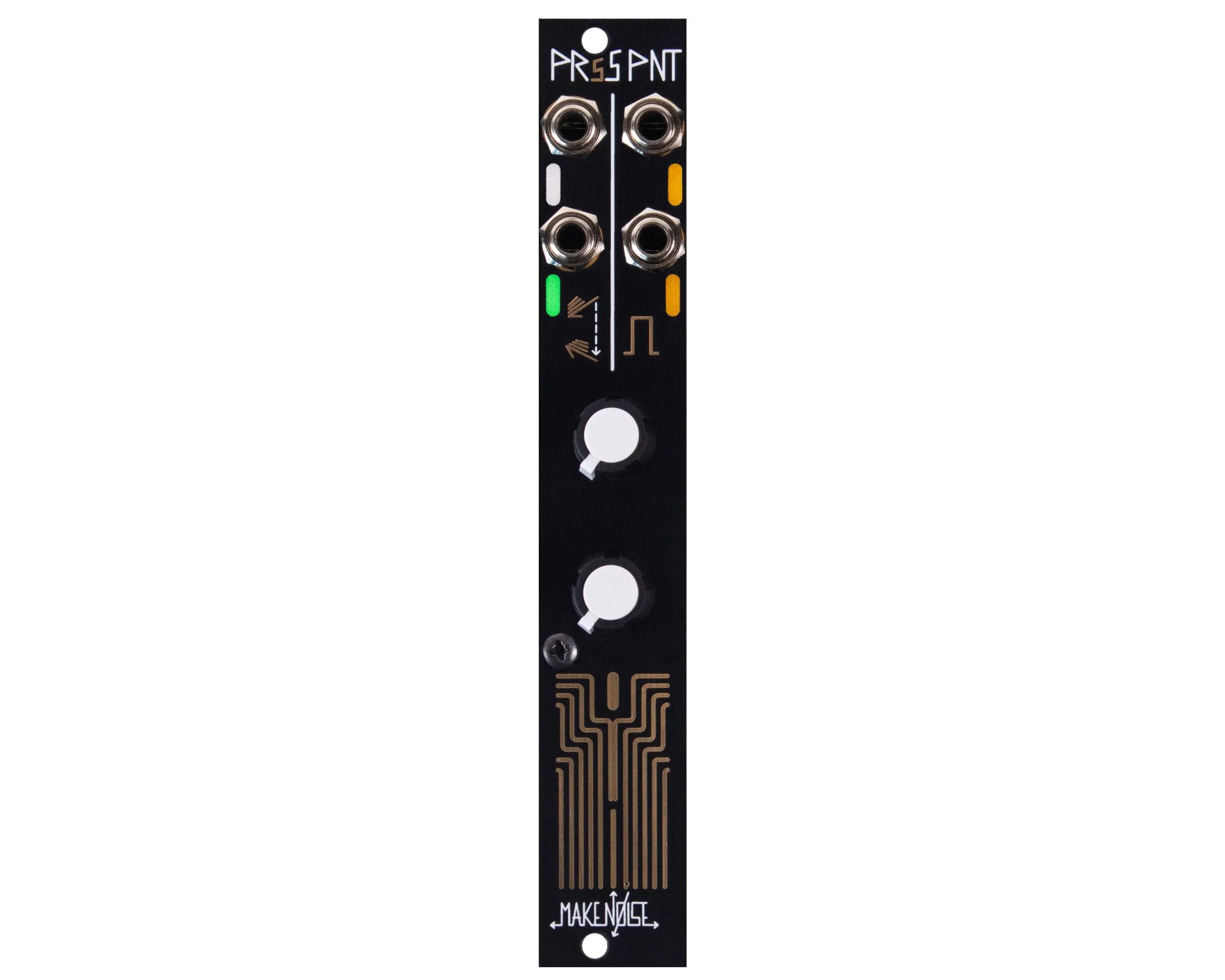

The PrssPnt music synthesiser module is a controller in which several signals are generated by touching the printed copper wire at the bottom of the instrument. Touching PrssPnt, you become part of the circuit, generating a total of four simultaneous signals (two CV, two Gate).

The basic function of PrssPnt will be familiar to anyone who has used Pressure Points or 0-CTRL. It could be seen as a single “souped-up” channel of one of these devices. Since it is a single channel, the tuned voltage outputs are not relevant, and instead are replaced with more playable sensitivity controls and alternate pressure and gate outputs.

Features:

• Momentary Gate output remains high as long as it is being pressed
• Toggled Gate output goes high and low with each successive press of the plate: press it to make it go high, press it again to make it go low
• Pressure output generates a positive control signal proportional to the amount of Pressure applied, further tailored by the Sensitivity Panel Control
• Smooth Touch Function recreates the useful patch of sending a Pressure Output through a carefully tuned slew limiter for extended function generation
• Turning up the Slew amount will allow for larger than life functions with very long decay to be generated by hand.
• All four outputs available simultaneously

Video:

Product Specs

• Item Number: 32446
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: United States
• MPN: PRSSPNT
• Modular Grid: Eurorack
• Dimensions*: 4 HP 30 mm deep
• Power*: 14 mA 12V 0 mA -12V 0 mA 5V
