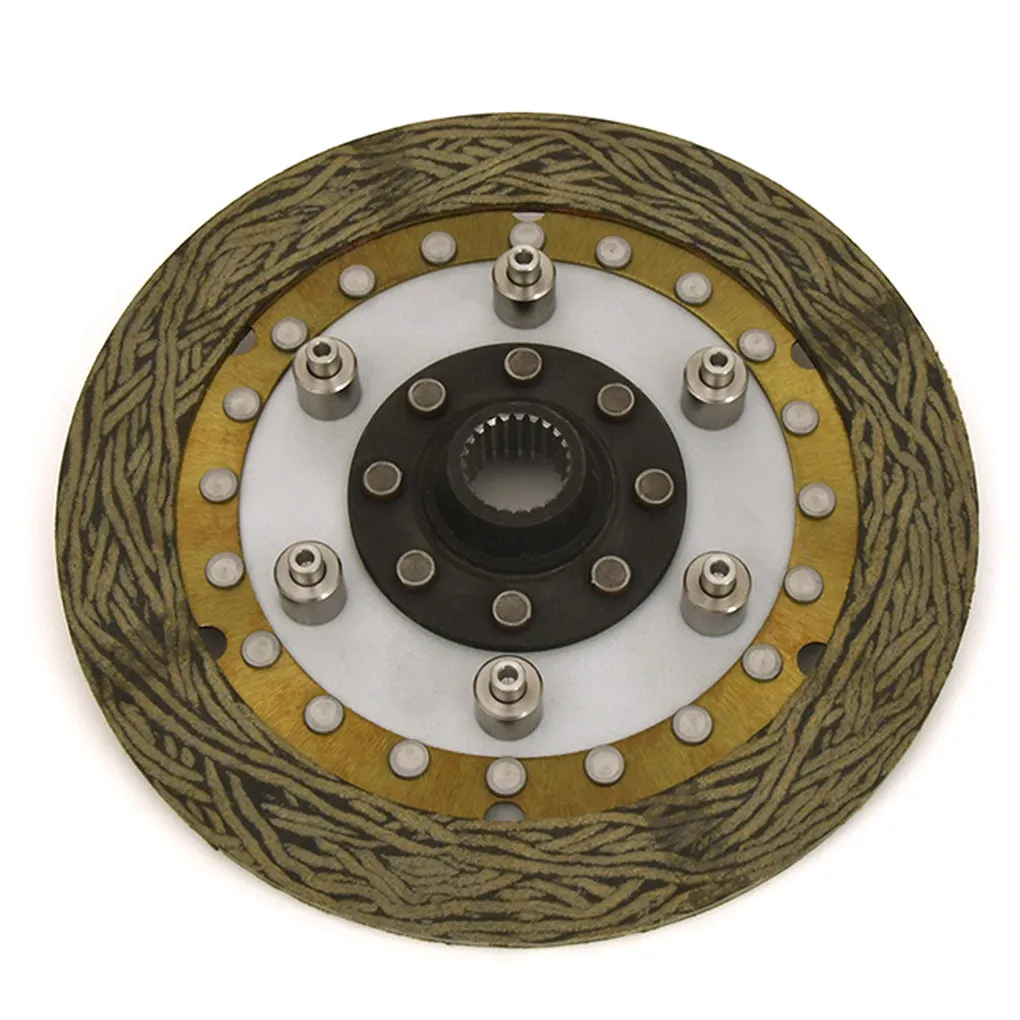

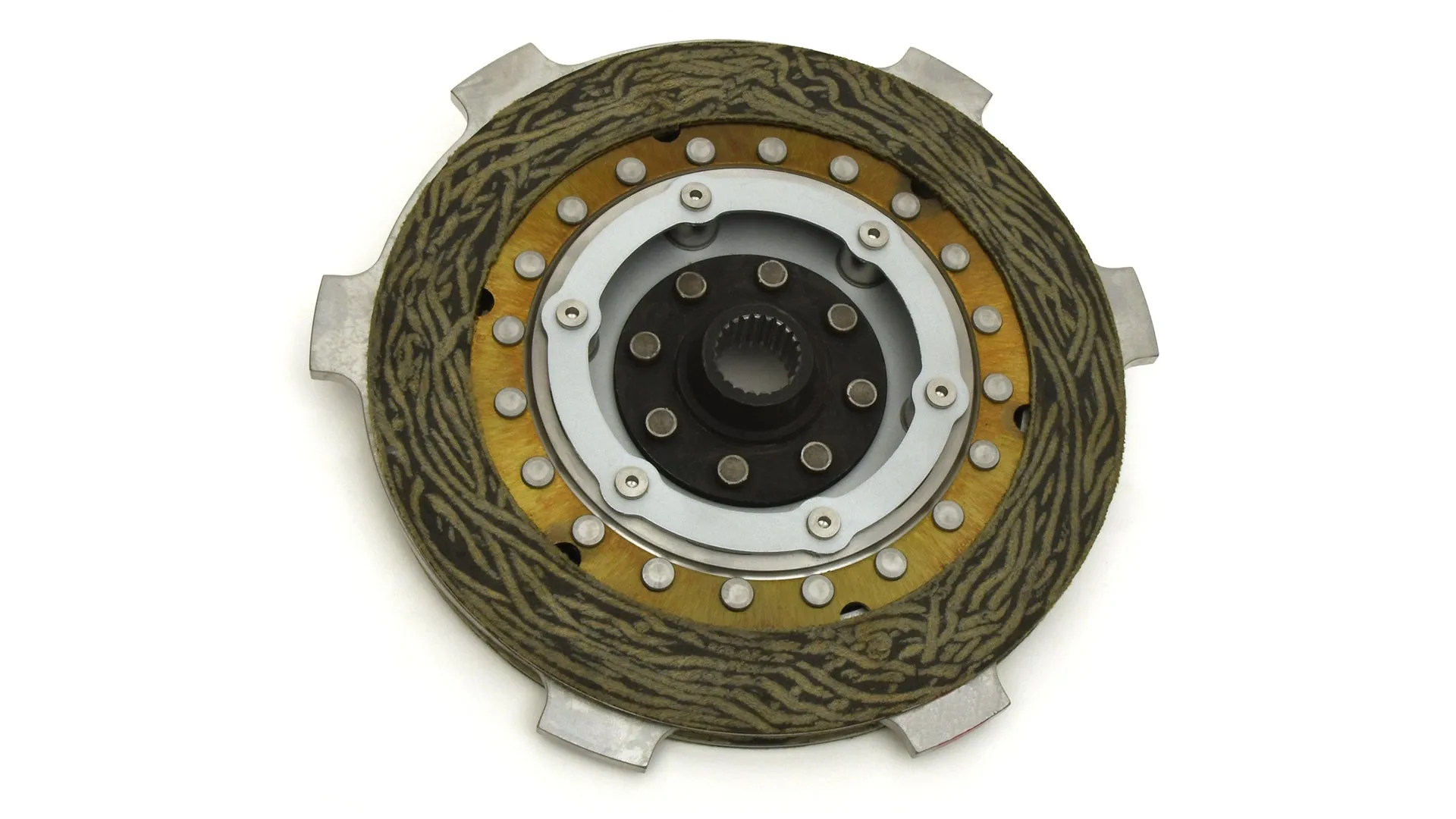

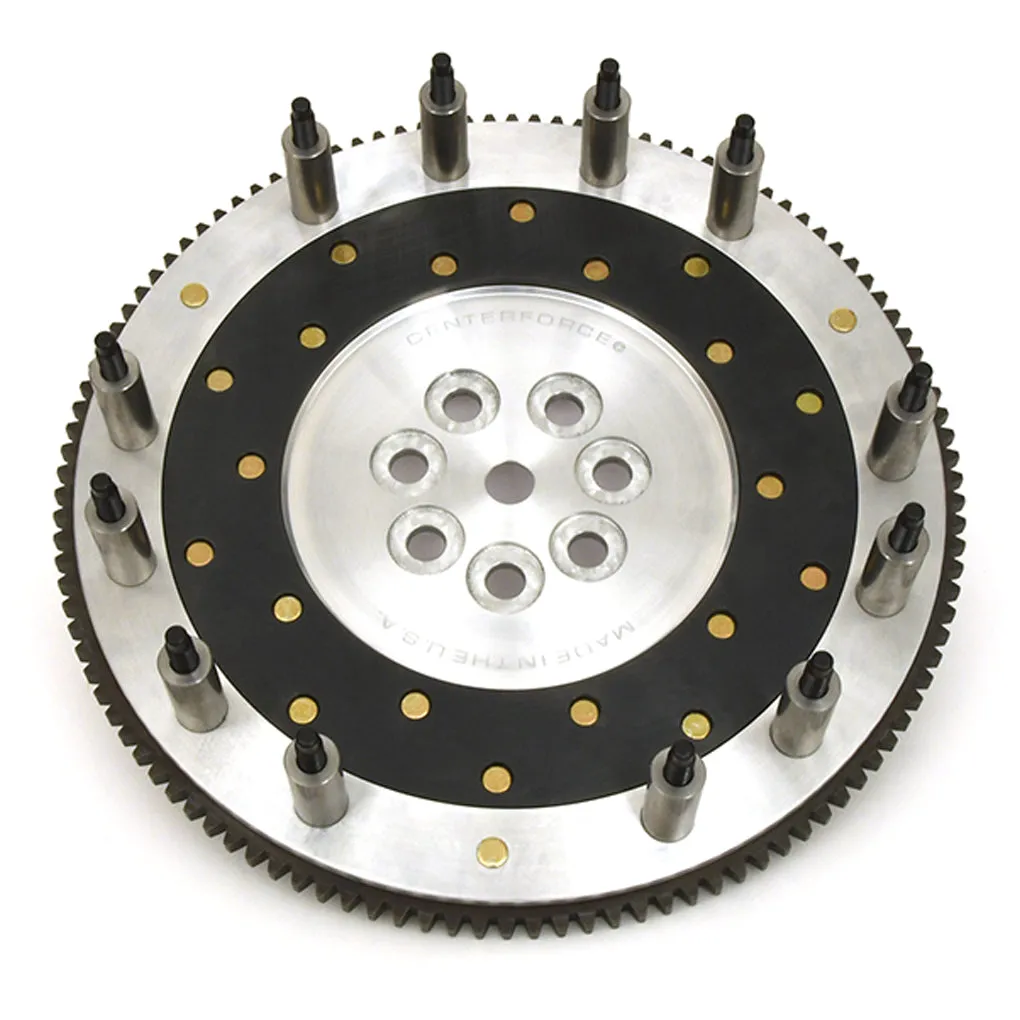

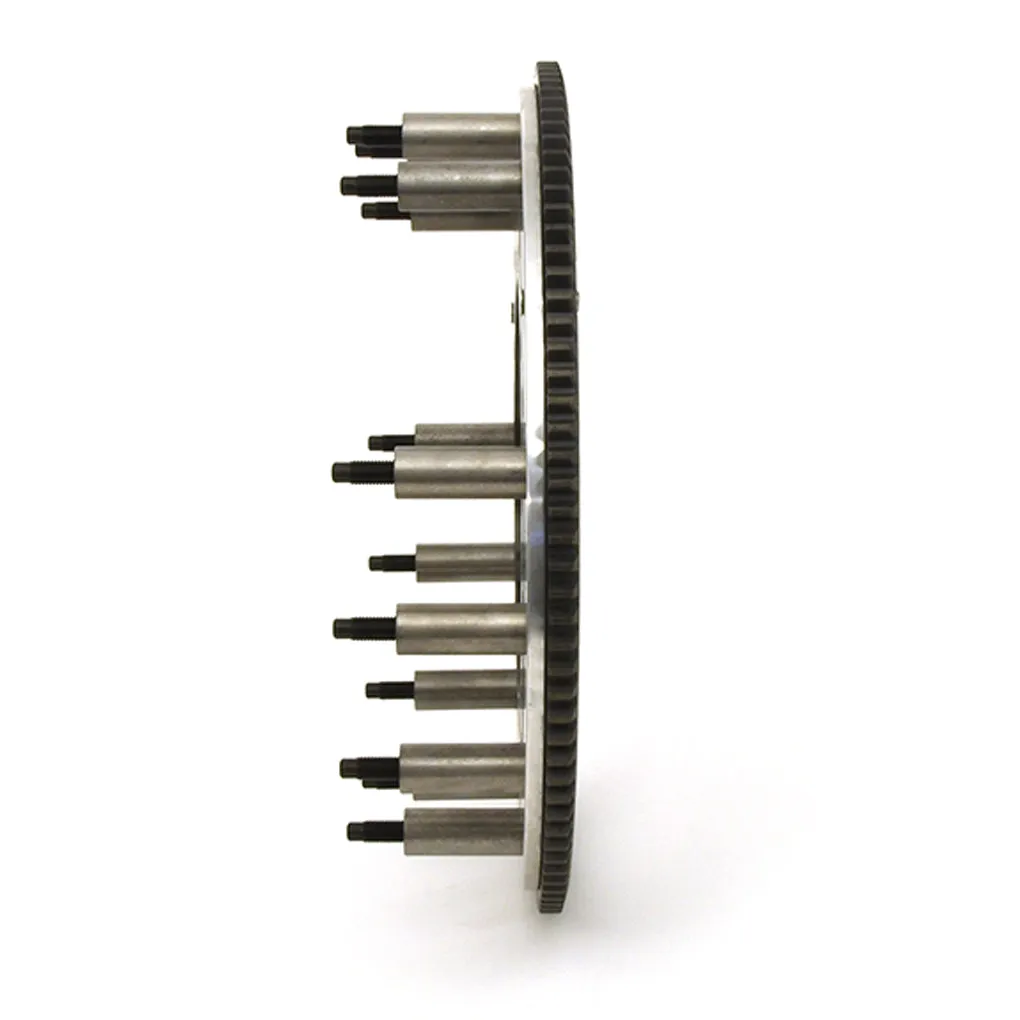

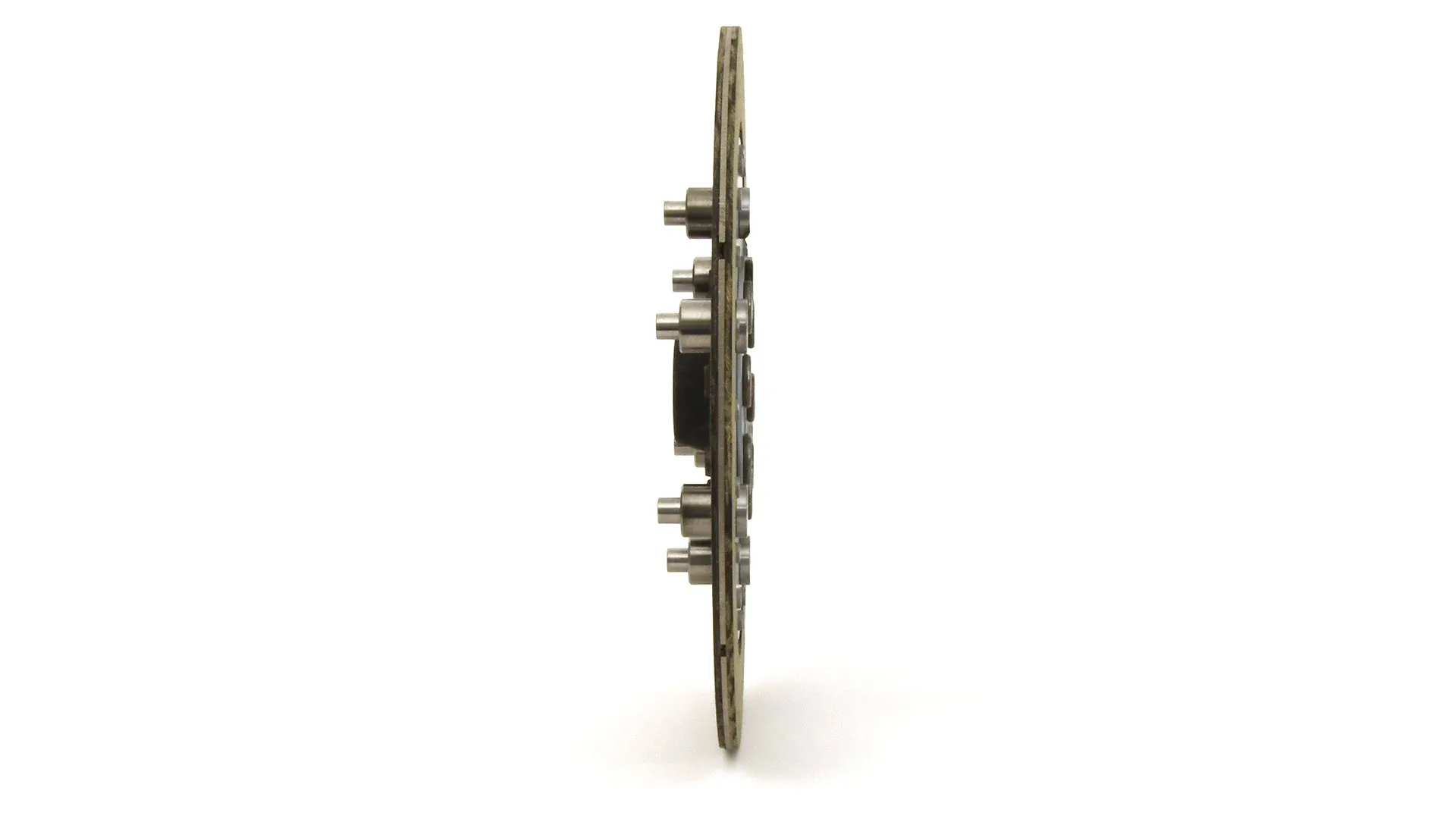

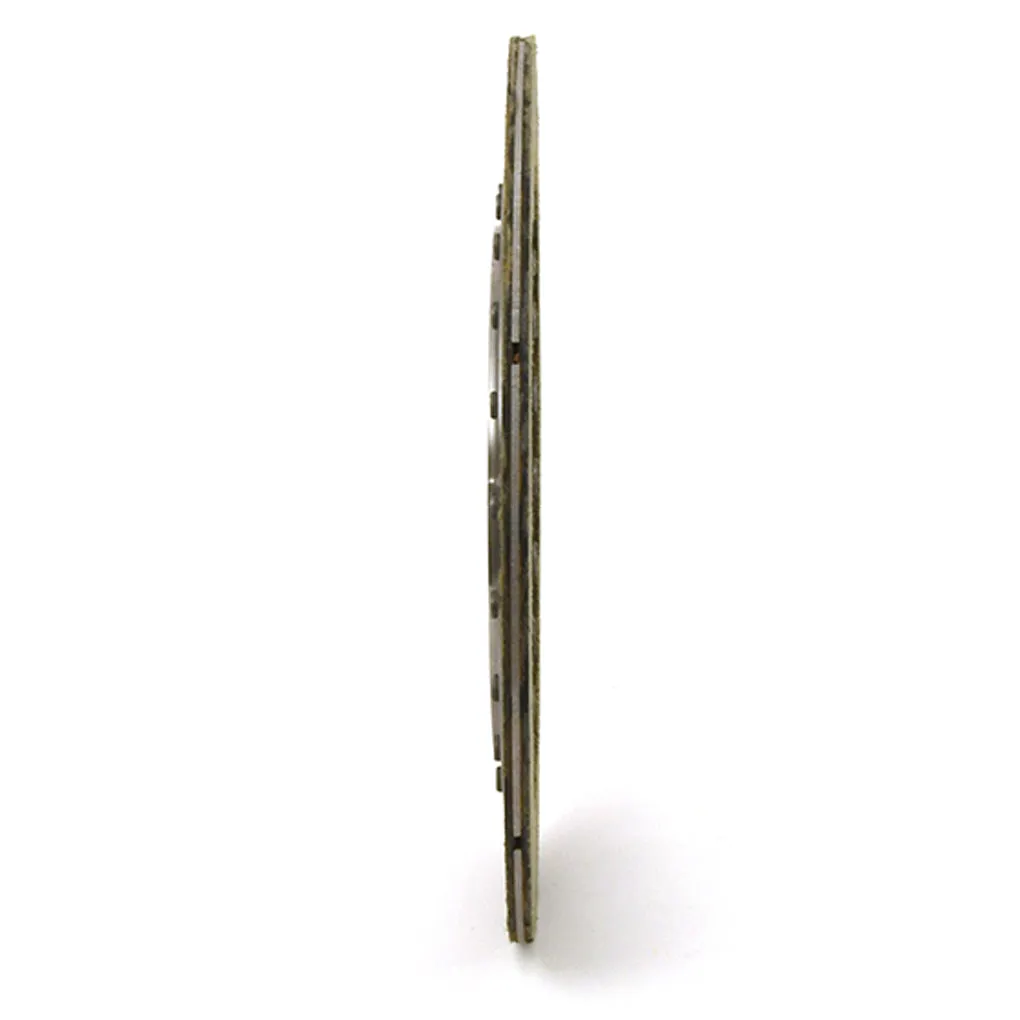

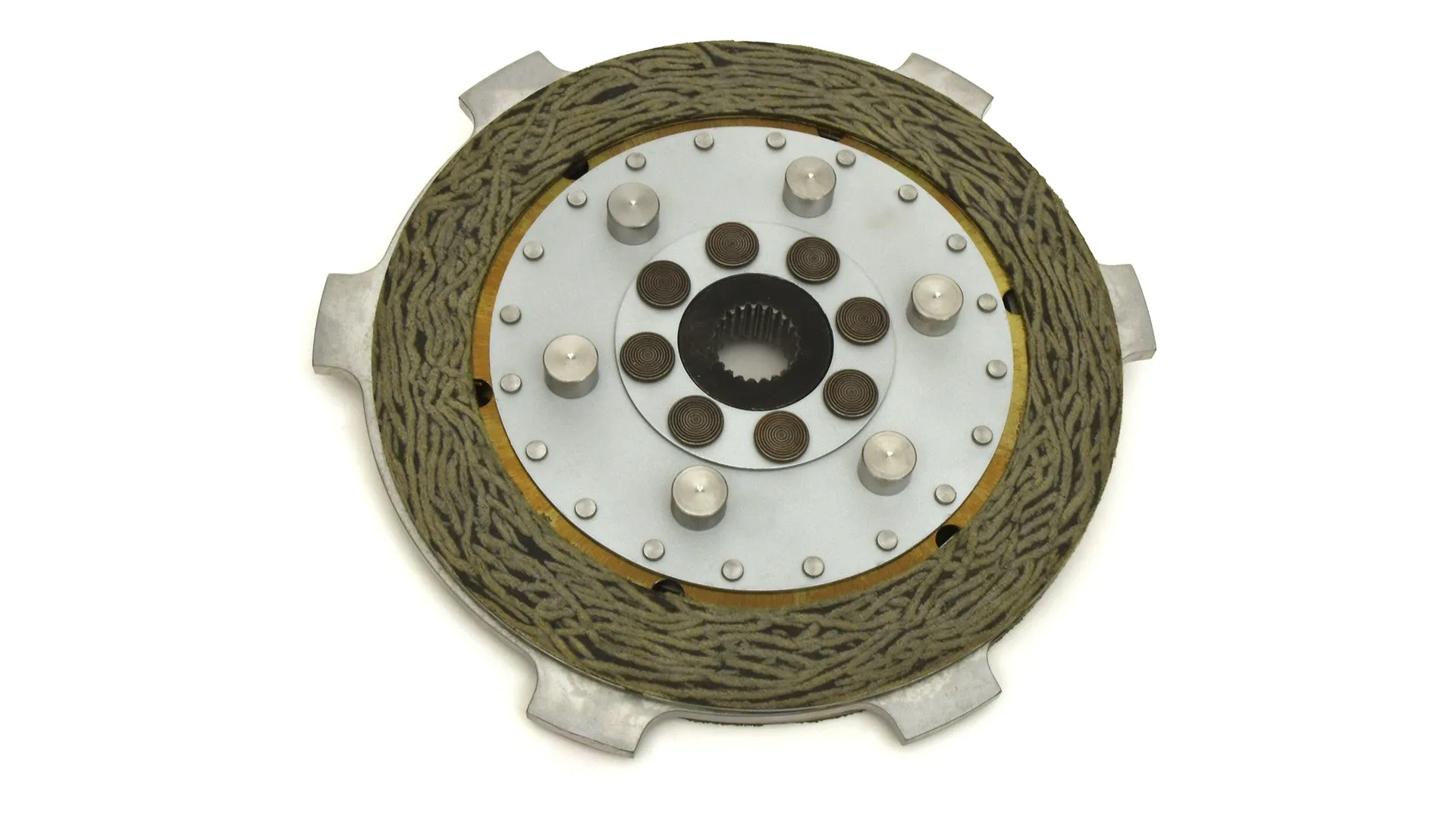

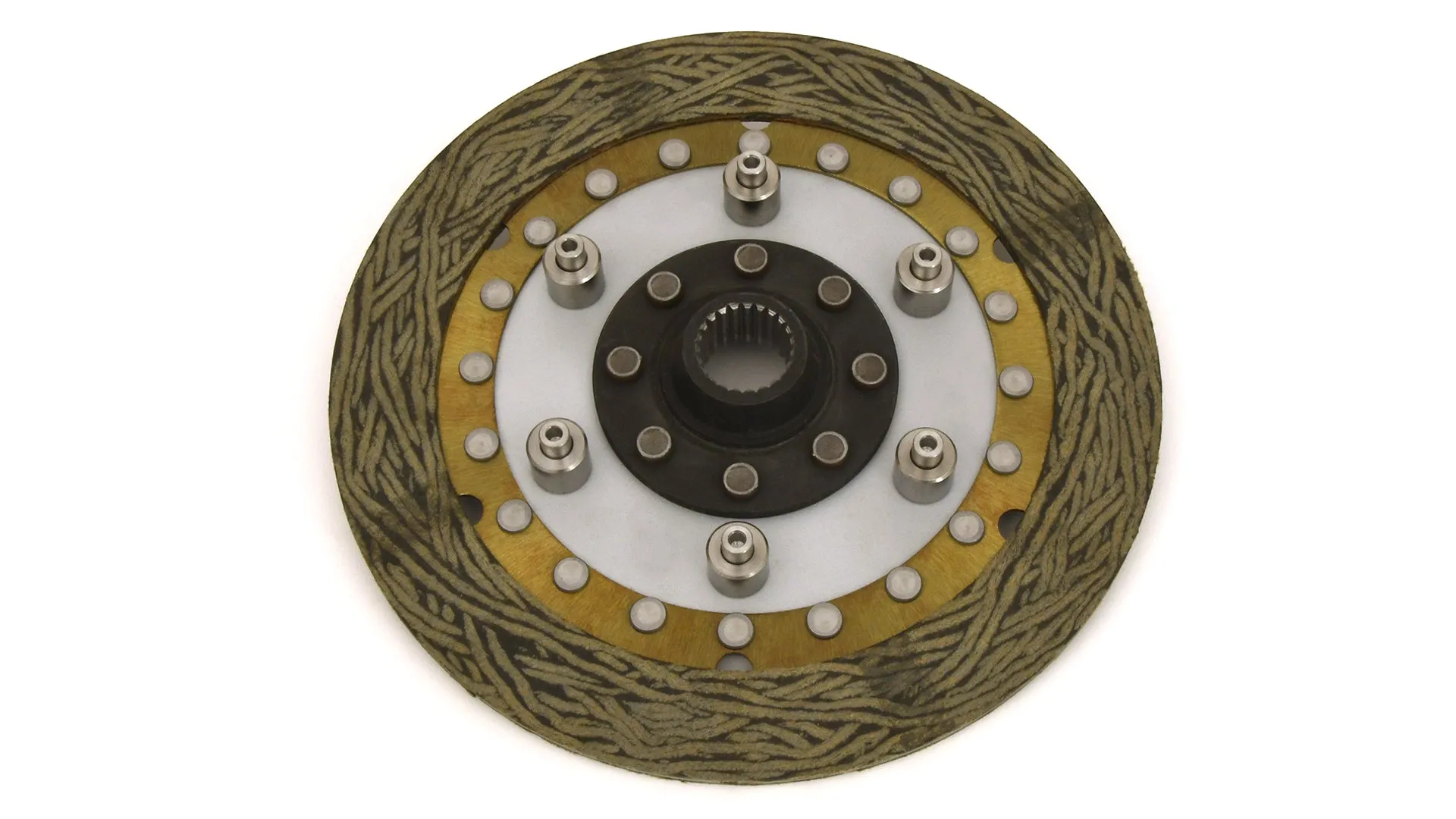

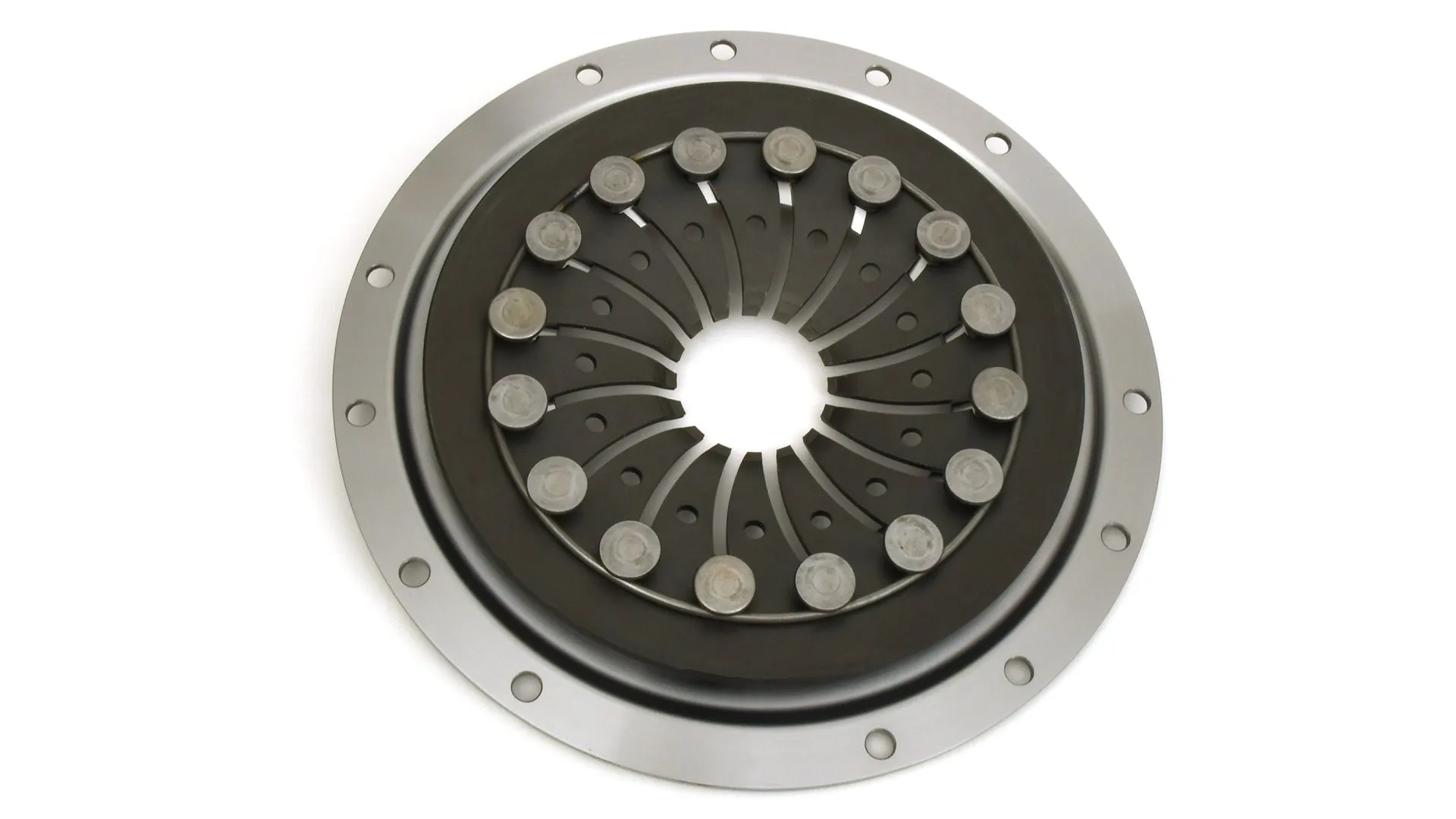

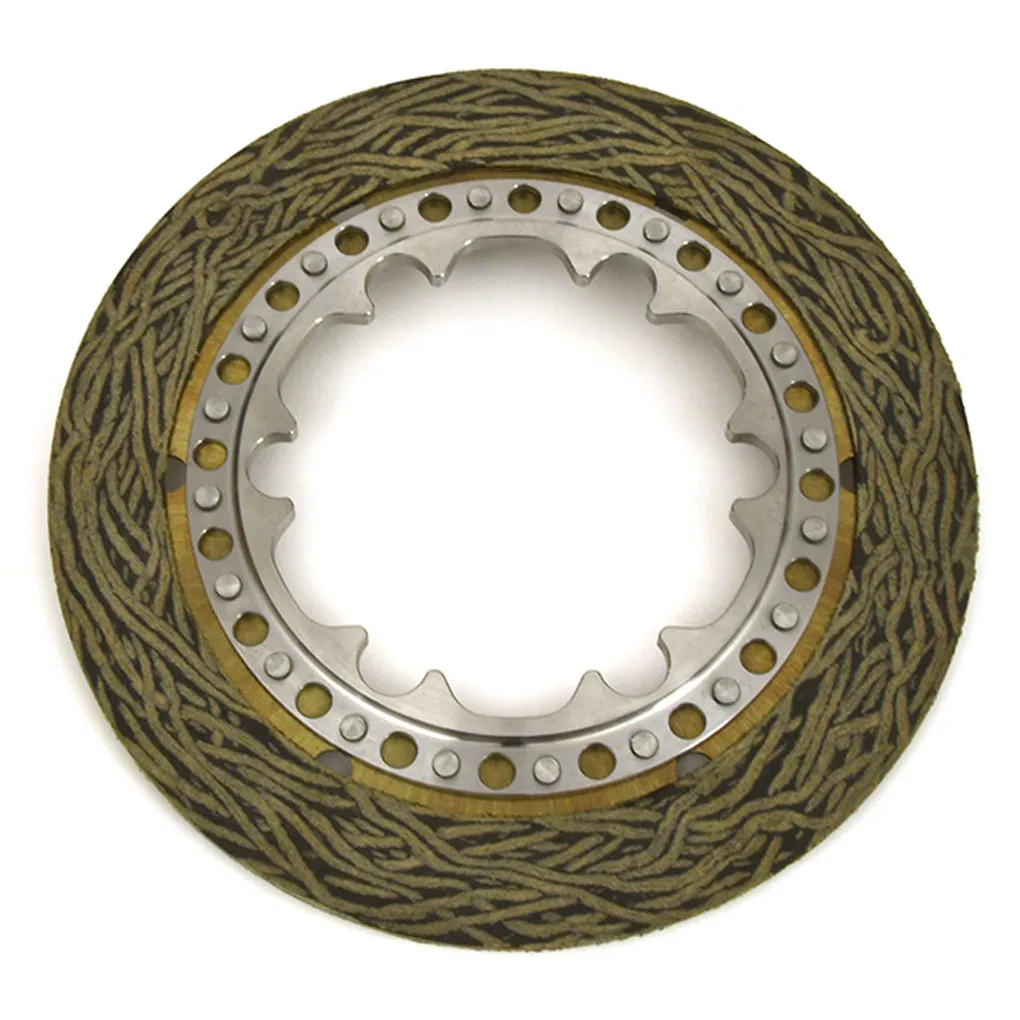

The Centerforce(R) DYAD DS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 300 to 600 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The discs pack is equipped with Kevlar full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Specifications:

California Proposition 65	WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Crankshaft Bolt Hole Quantity	7
Description_ABR	MDA
Description_ASM	1996 thru 2006 Mitsubishi Lancer Evolution 2.0L
Description_DEF	Transmission Clutch and Flywheel Kit
Description_DES	DYAD(R) DS 8.75, Clutch and Flywheel Kit
Description_EXT	The Centerforce(R) DYAD(R) DS (Drive System) 8.75 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 300 to 600 ft /lbs.
Description_FAB	8.75" Diameter;
Description_INV	Centerforce, Full Kits W/Flywheel

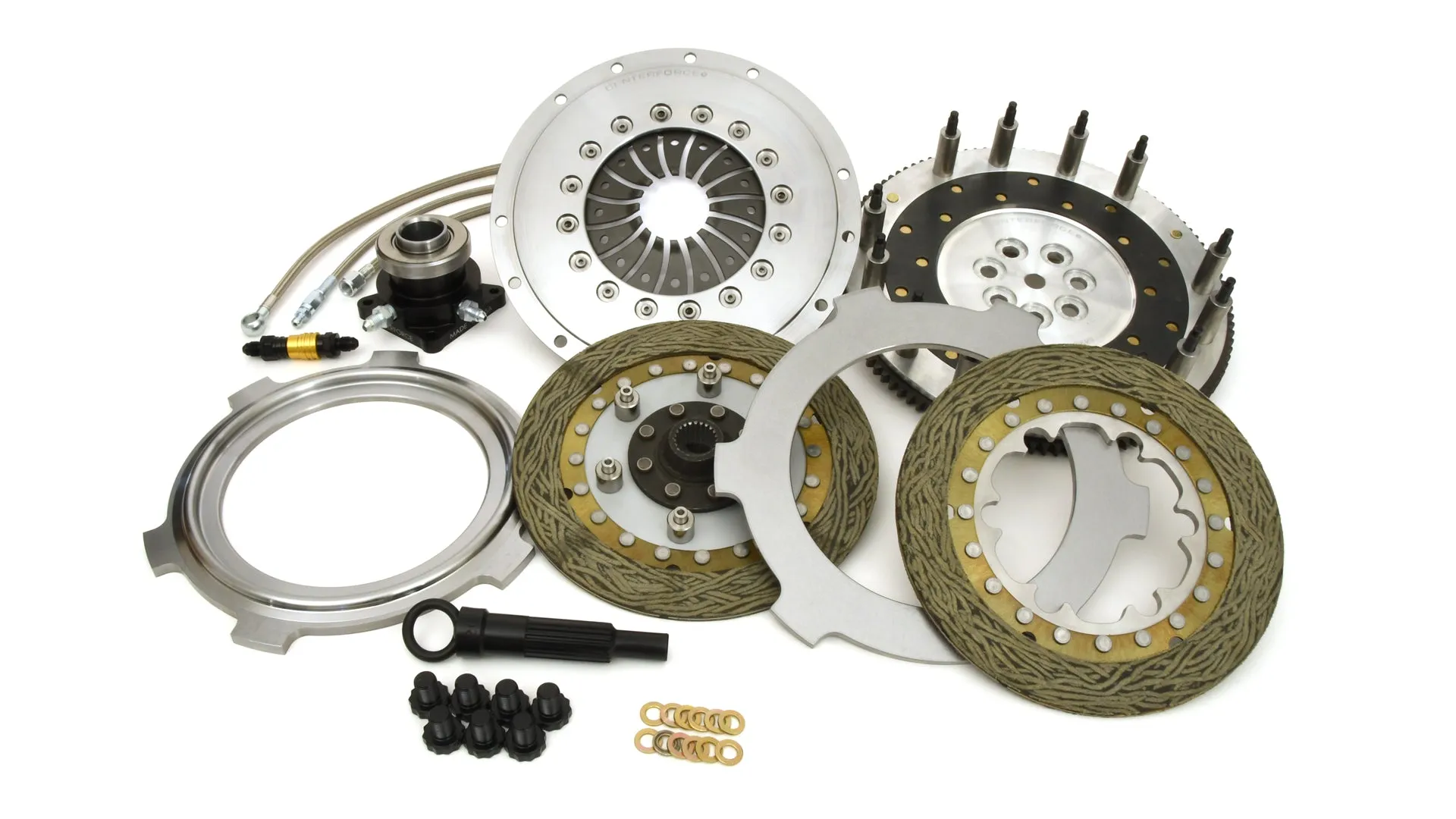

Description_LAB	P.Plate, Disc Pack w Floater, Flywh, P.P.Bolts, and H.R.B./Slave
Description_MKT	The Centerforce(R) DYAD DS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 300 to 600 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The discs pack is equipped with Kevlar full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Description_SHO	Full Kits W/Flywheel
Description_SLA	Clutch and Flywheel Kit, DYAD DS, 8.75-IN/222.3-MM, 1-IN - 23 Spl., Solid Full face Organic/Kevlar Disc, 300-600 Ft/Lbs Trq. Cap.
Disc Material	Organic/Kevlar
Disc Type	Full face
height	5.5
Input Shaft Diameter	1
Input Spline Quantity	23
length	18.0
LTL	N
Material	Organic
Mounting Hardware Included	Yes
Title	PN: 824231820 - DYAD DS 8.75, Clutch and Flywheel Kit
Tooth Quantity	114
Torque Capacity	300-600
weight	23.4
width	18.0
