The Centerforce(R) DYAD XDS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 400 to 800 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with metallic friction material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

Specifications:

California Proposition 65	WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Crankshaft Bolt Hole Quantity	7
Description_ABR	MDA
Description_ASM	1996 thru 2006 Mitsubishi Lancer Evolution 2.0L
Description_DEF	Transmission Clutch and Flywheel Kit
Description_DES	DYAD(R) XDS 8.75, Clutch and Flywheel Kit
Description_EXT	The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 8.75 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 400 to 800 ft /lbs.
Description_FAB	8.75" Diameter;
Description_INV	Centerforce, Full Kits W/Flywheel

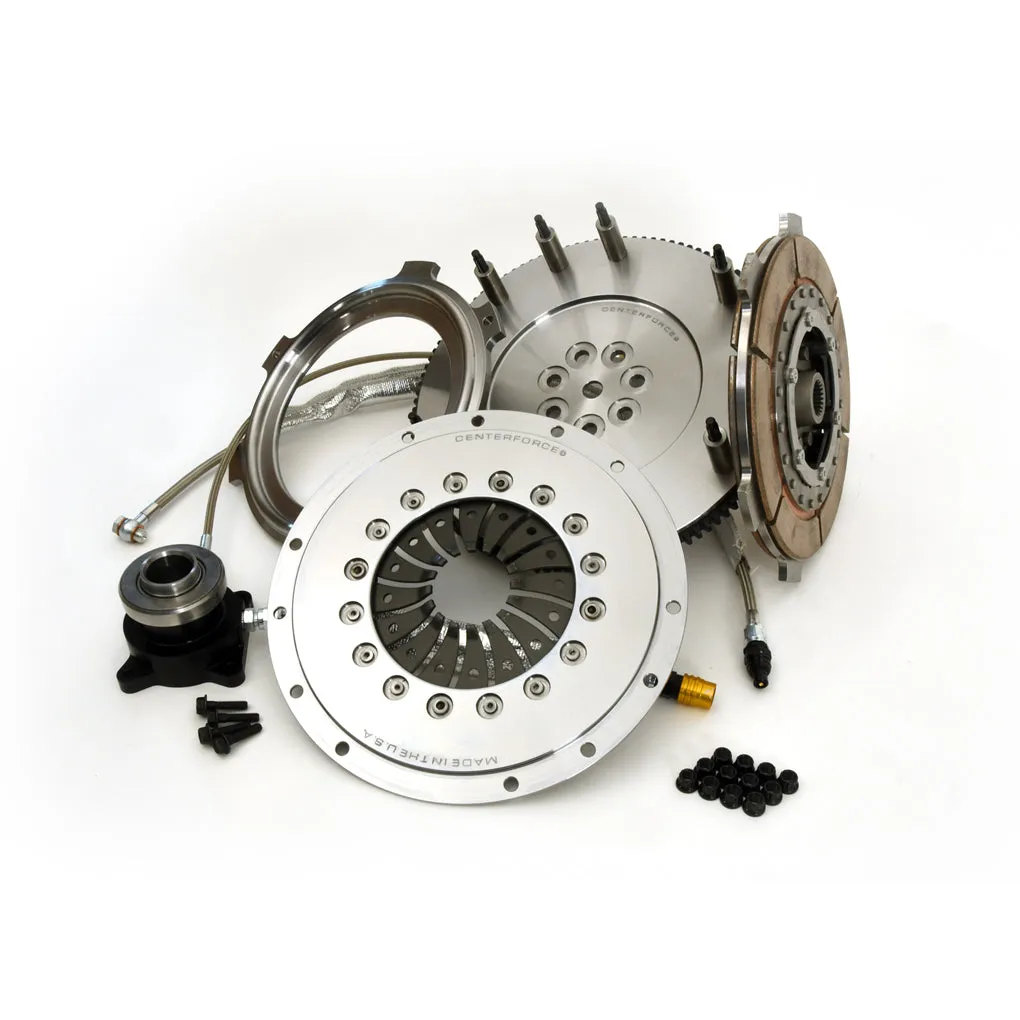

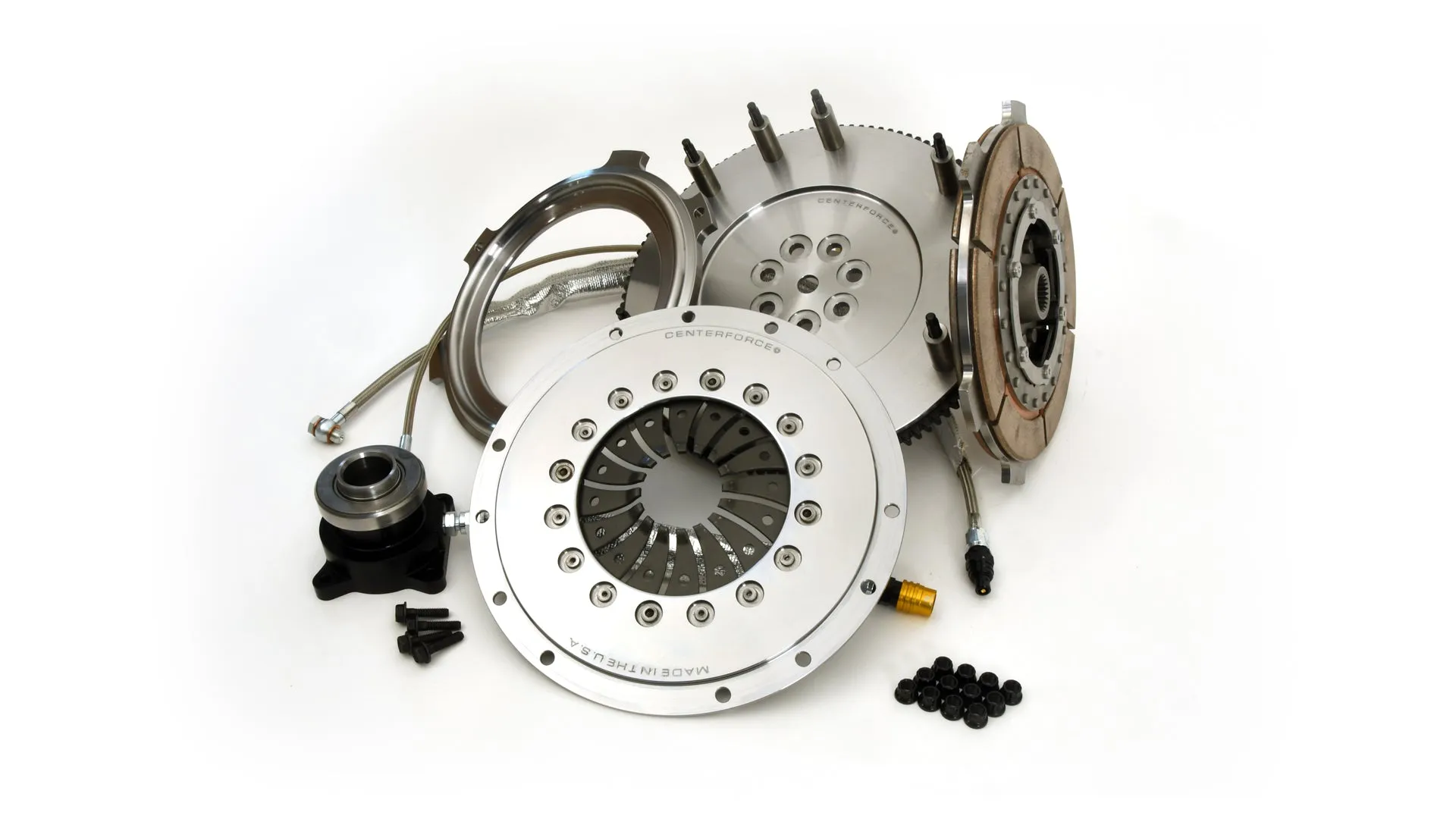

Description_LAB	P.Plate, Disc Pack w Floater, Flywh, P.P.Bolts, and H.R.B./Slave
Description_MKT	The Centerforce(R) DYAD XDS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 400 to 800 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with metallic friction material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Description_SHO	Full Kits W/Flywheel
Description_SLA	Clutch and Flywheel Kit, DYAD XDS, 8.75-IN/222.3-MM, 1-IN - 23 Spl., Solid Full face Sintered Metallic Disc, 400-800 Ft/Lbs Trq. Cap.
Disc Material	Sintered Metallic
Disc Type	Full face
height	5.5
Input Shaft Diameter	1
Input Spline Quantity	23
length	18.0
LTL	N
Material	Ceramic
Mounting Hardware Included	Yes
Title	PN: 818231520 - DYAD XDS 8.75, Clutch and Flywheel Kit
Tooth Quantity	114
Torque Capacity	400-800
weight	32.9
width	18.0
