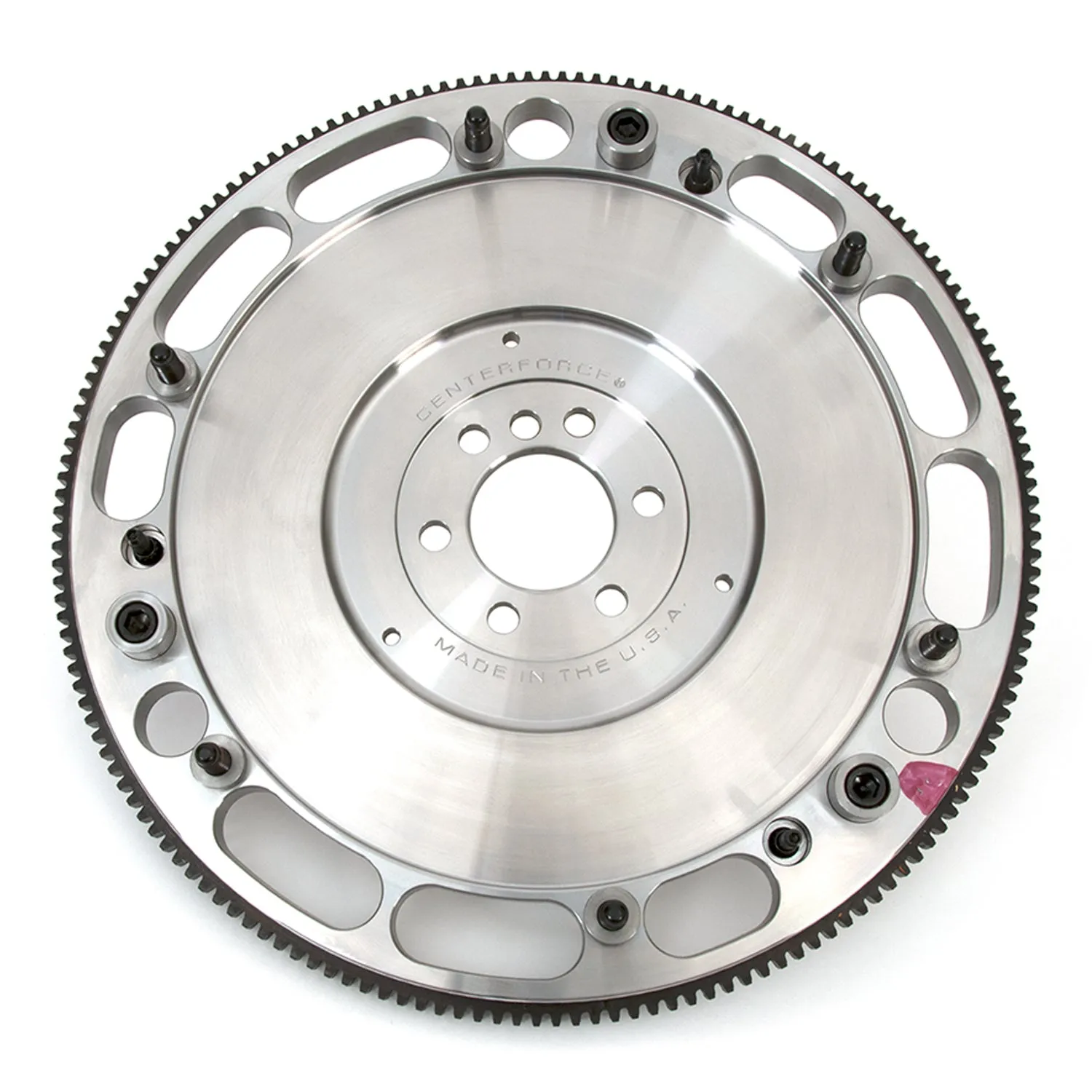

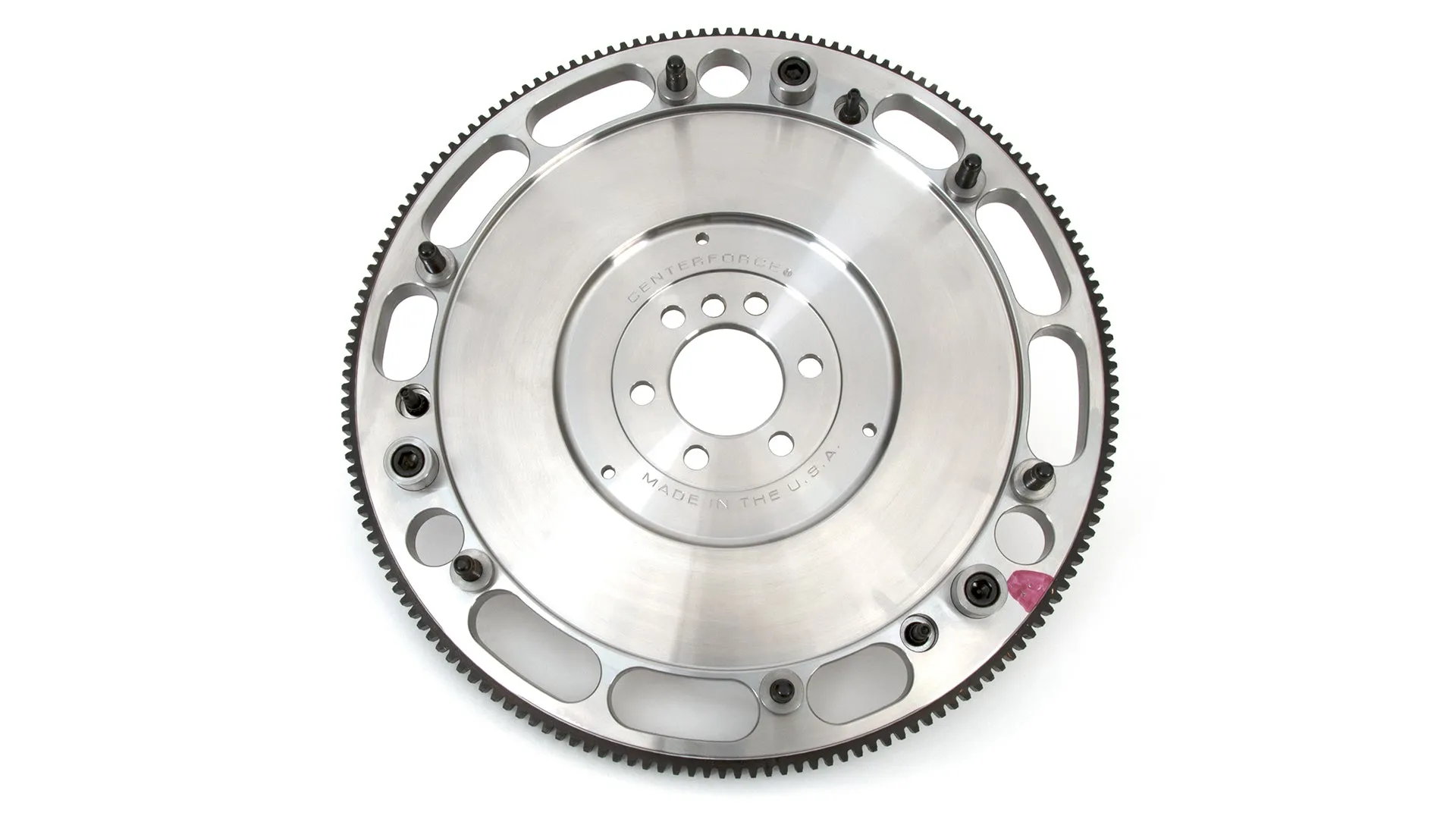

The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

Resources

Specifications:

Alignment Tool Included	Yes
California Proposition 65	WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Crankshaft Bolt Hole Quantity	6
Description_ABR	MDA
Description_ASM	1997 thru 2015 Chevrolet Camaro and Corvette 8 Cylinders
Description_DEF	Transmission Clutch and Flywheel Kit
Description_DES	DYAD(R) XDS 10.4, Clutch and Flywheel Kit
Description_EXT	The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 700 to 1600 ft /lbs.
Description_FAB	10.4" Diameter;
Description_INV	Centerforce, Full Kits W/Flywheel

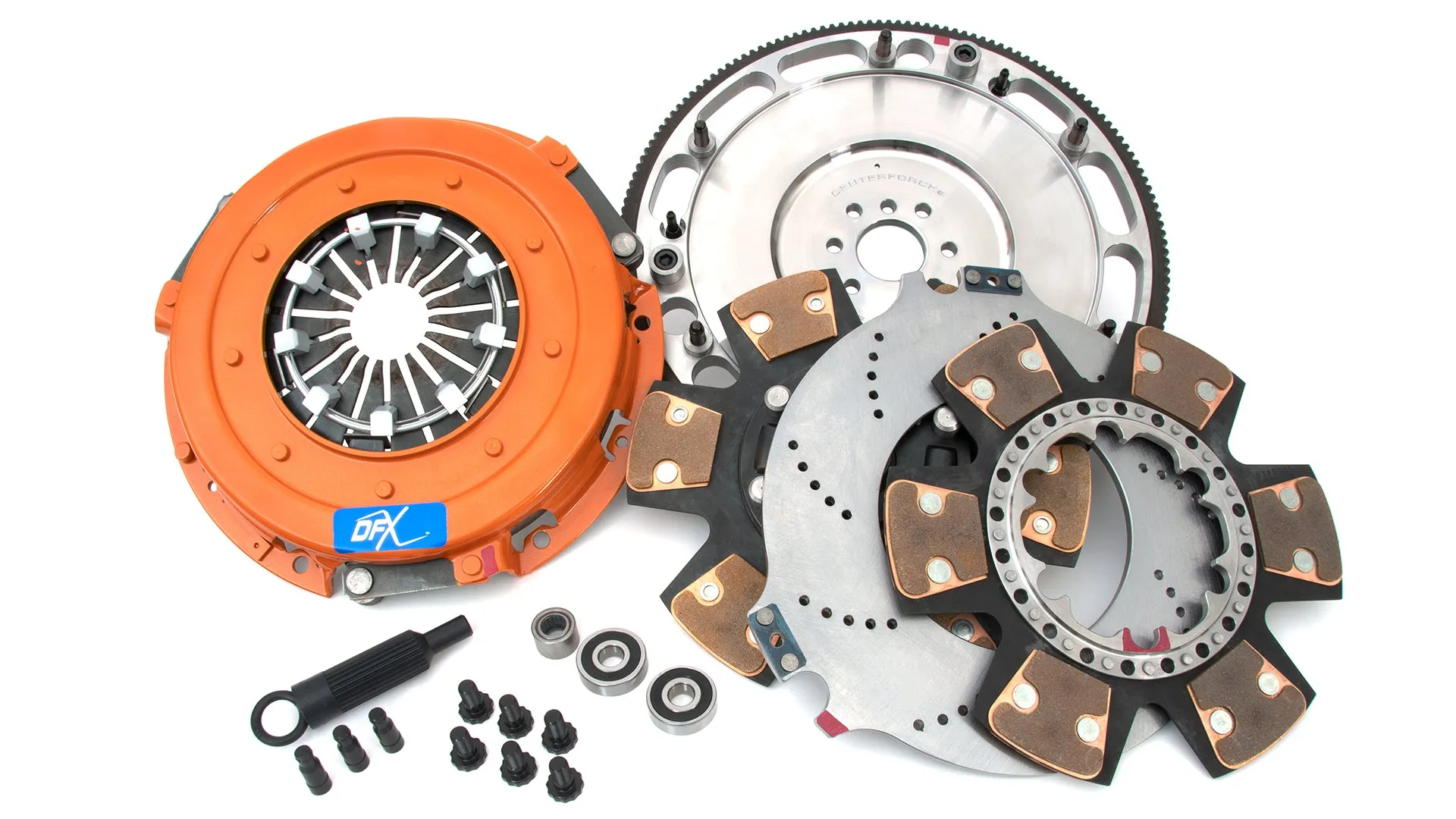

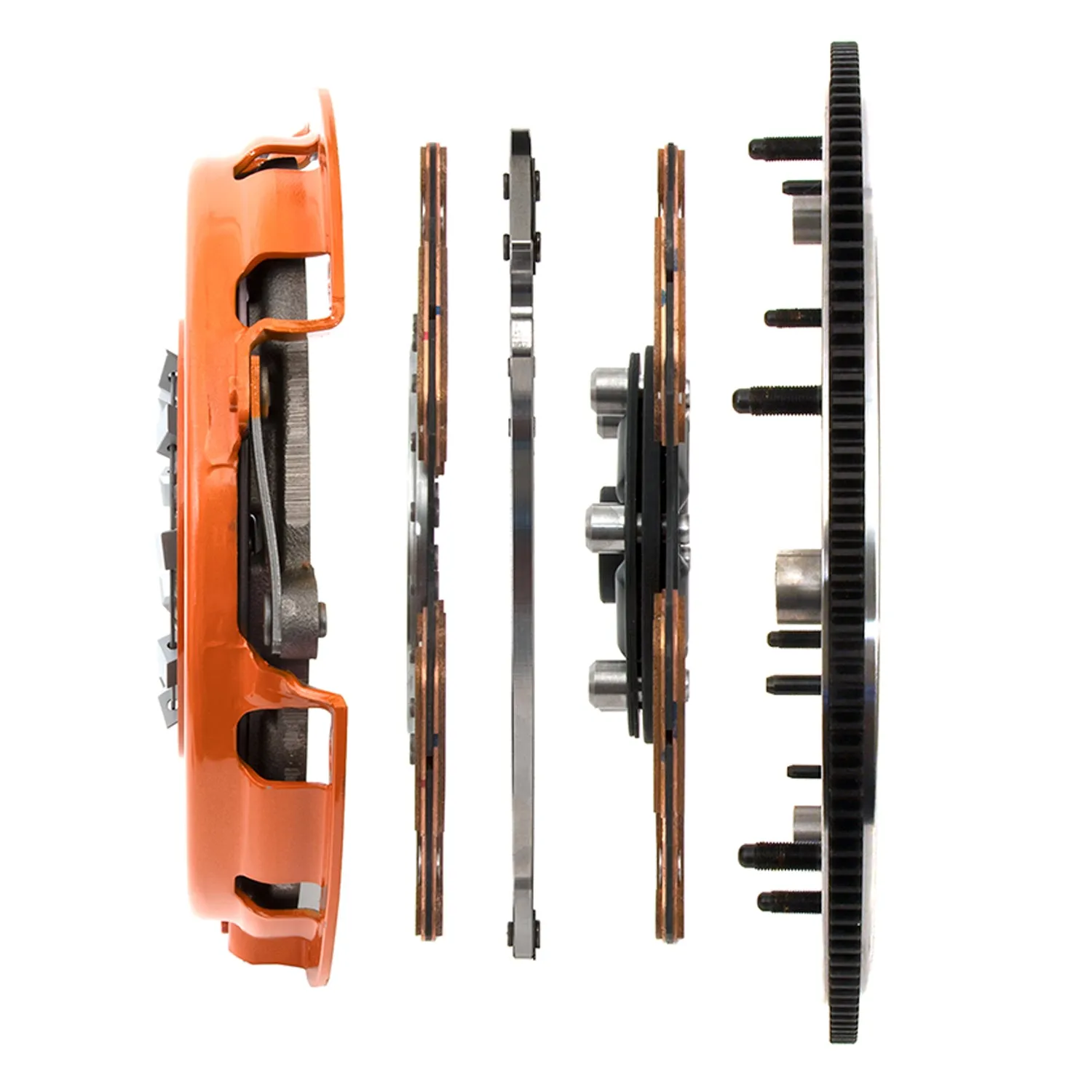

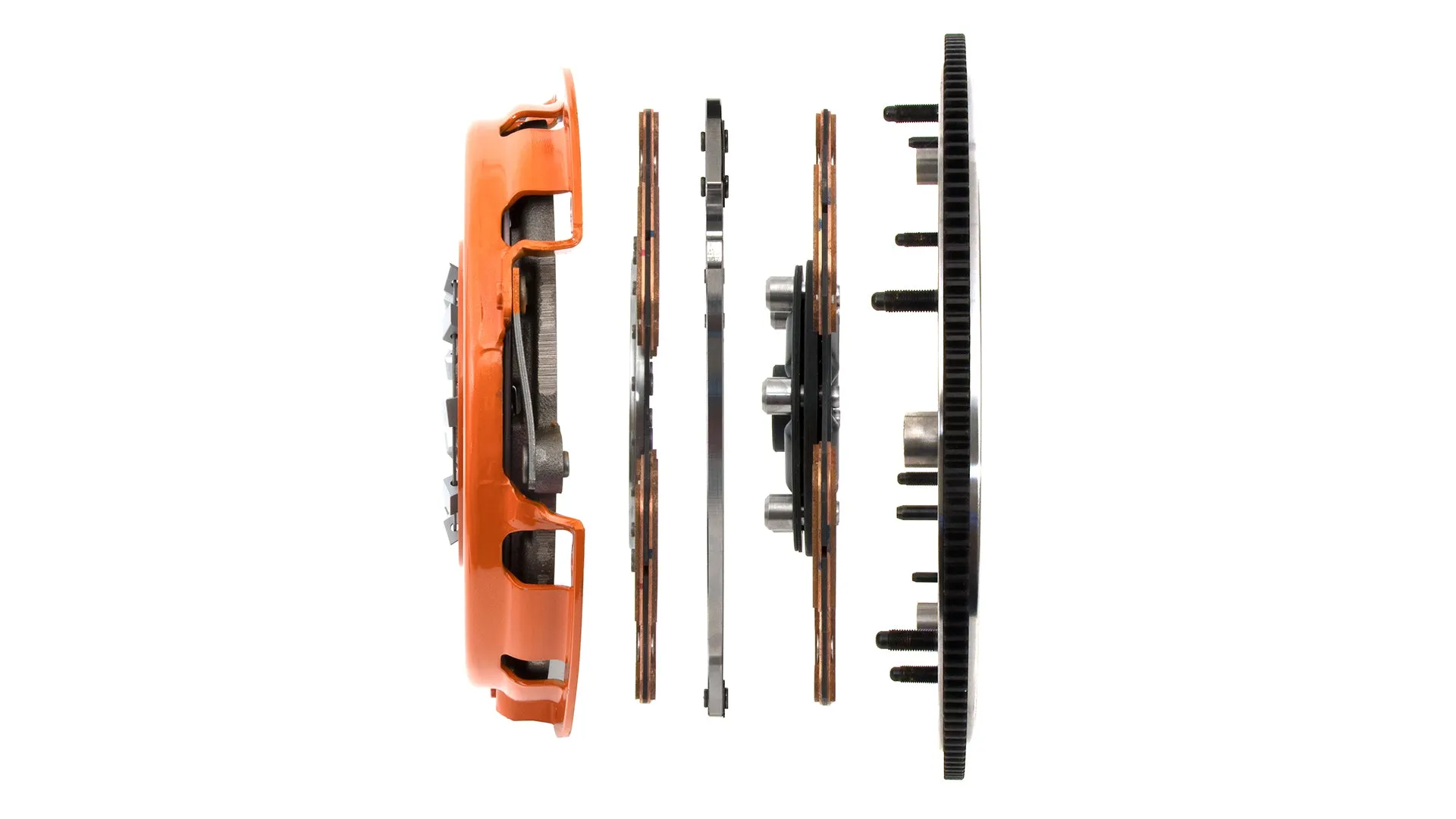

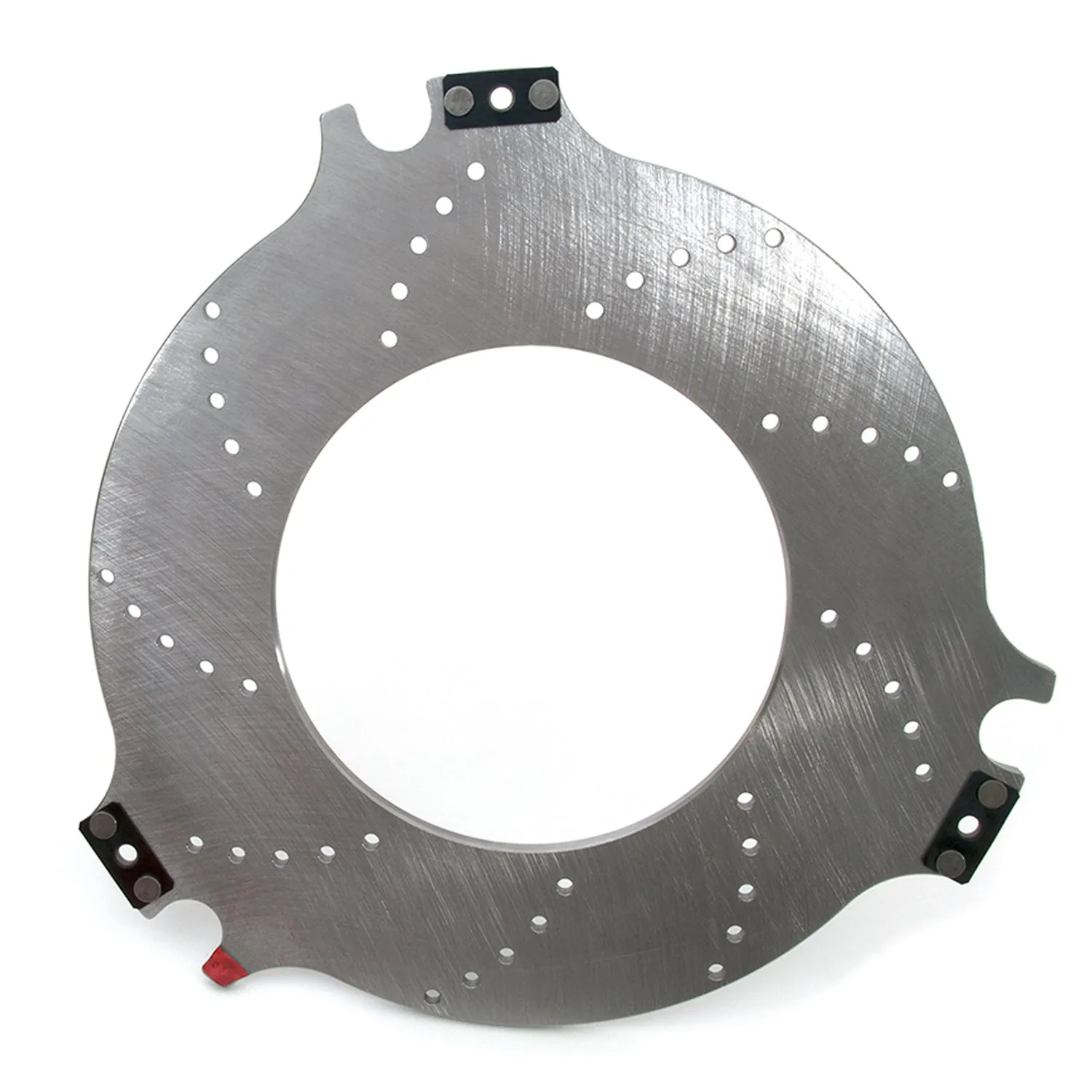

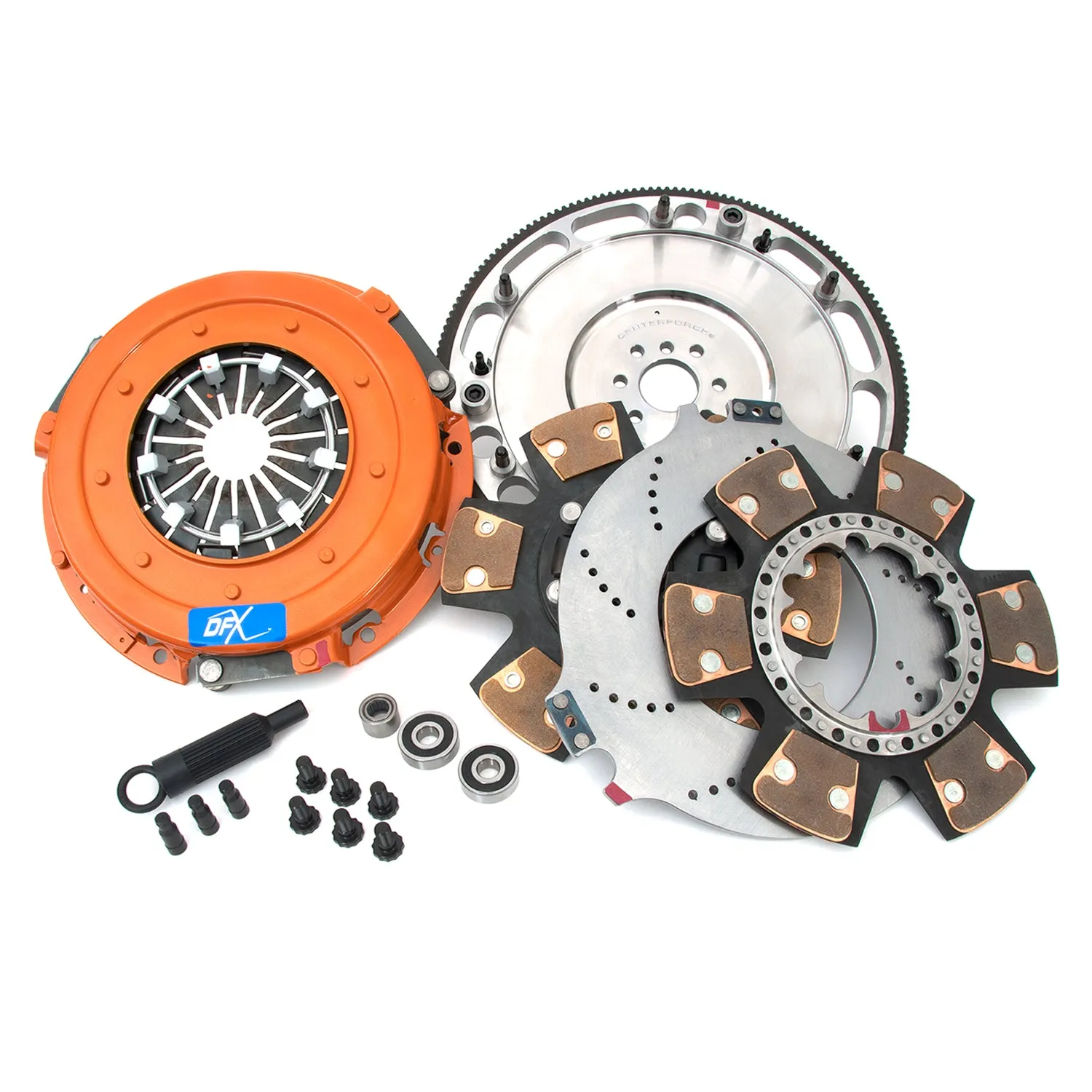

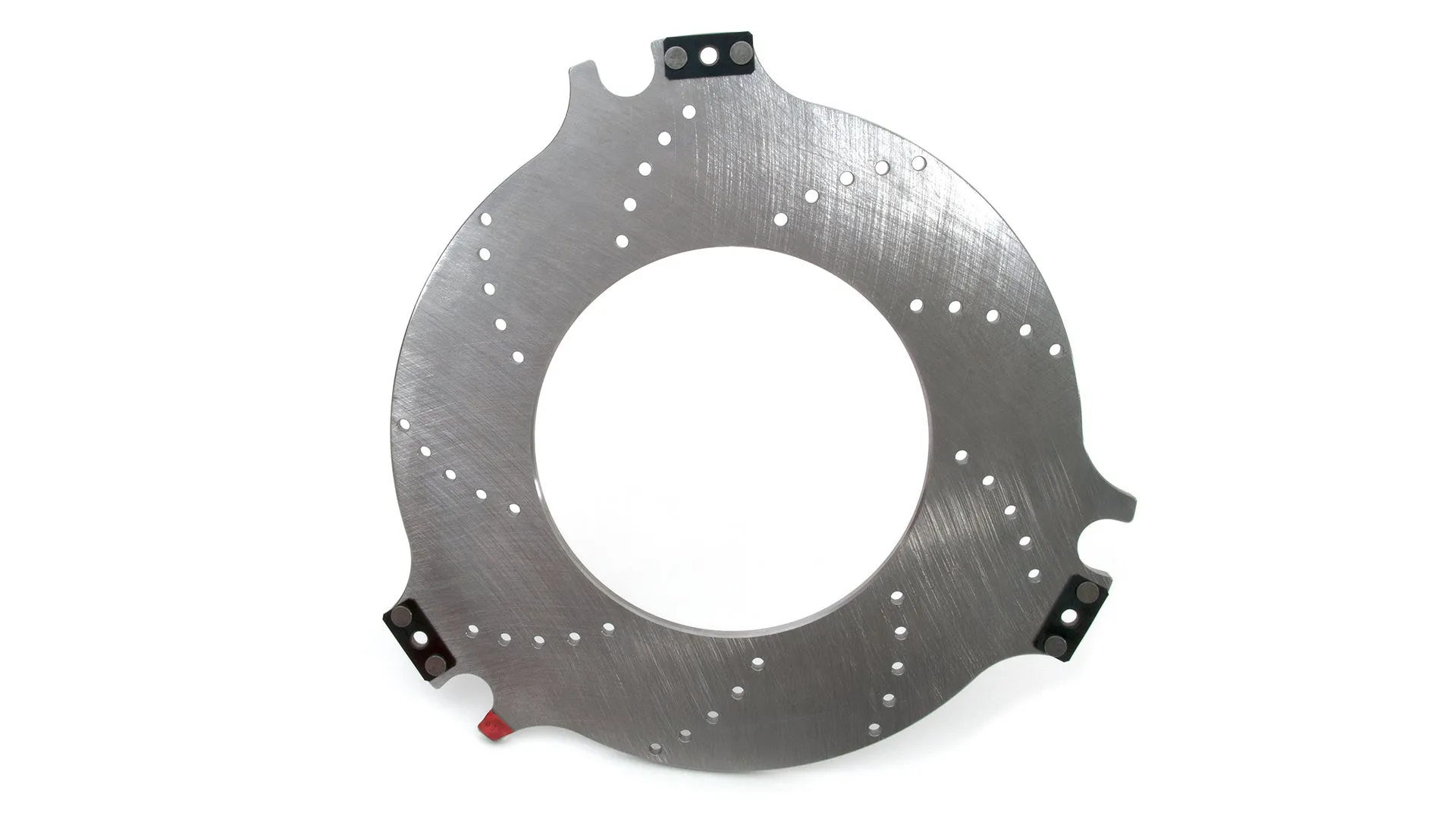

Description_LAB	Cover, Discs, Floater, Flywheel, Bolts, Pilot Bearings, Align Tool
Description_MKT	The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Description_SHO	Full Kits W/Flywheel

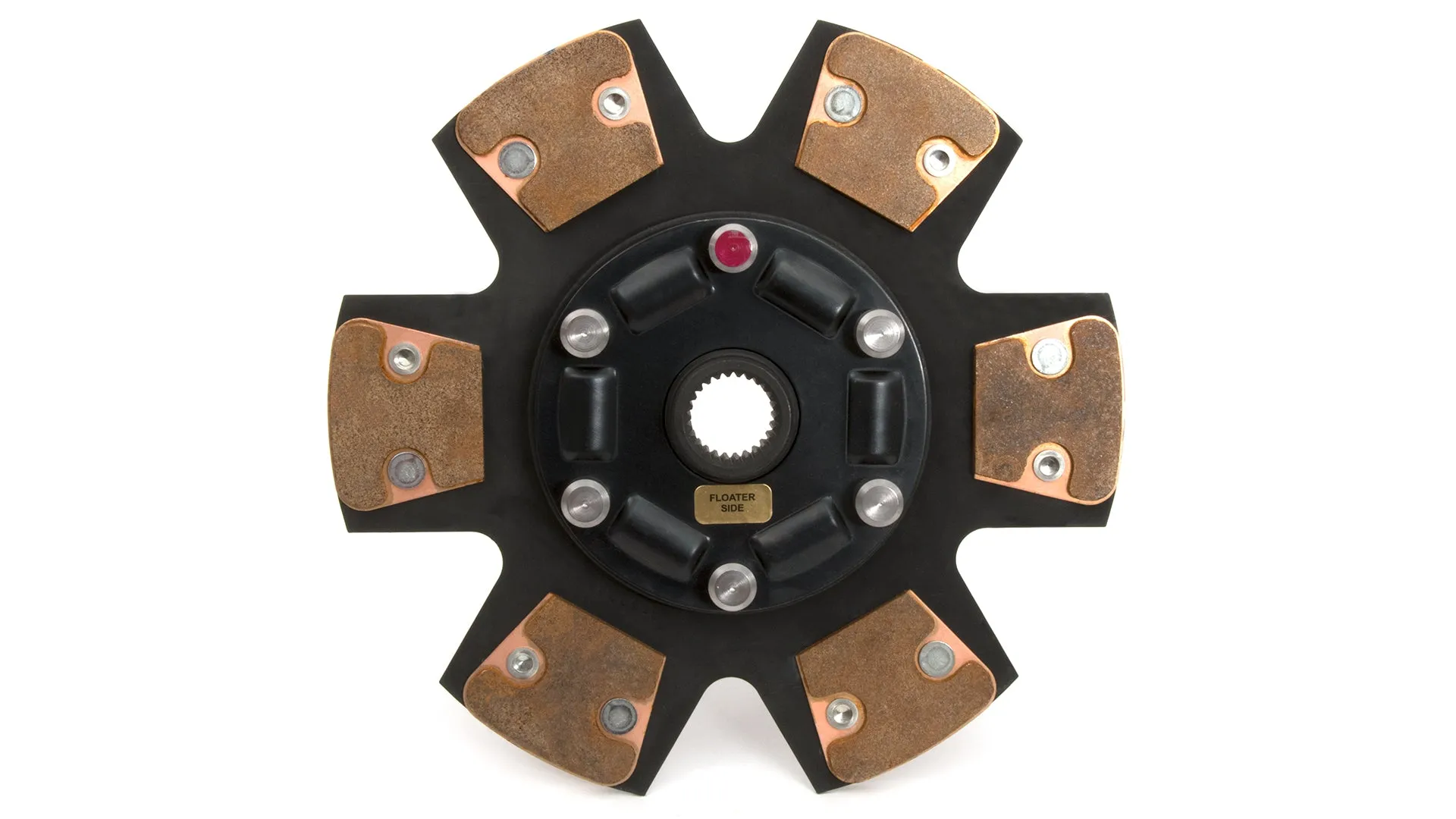

Description_SLA	Clutch and Flywheel Kit, DYAD XDS, 10.4-IN/264.2-MM, 1-1/8-IN - 26 Spl., Sprung 6-Paddle Cerametallic Twin Disc, 1600 Ft/Lbs Trq. Cap.

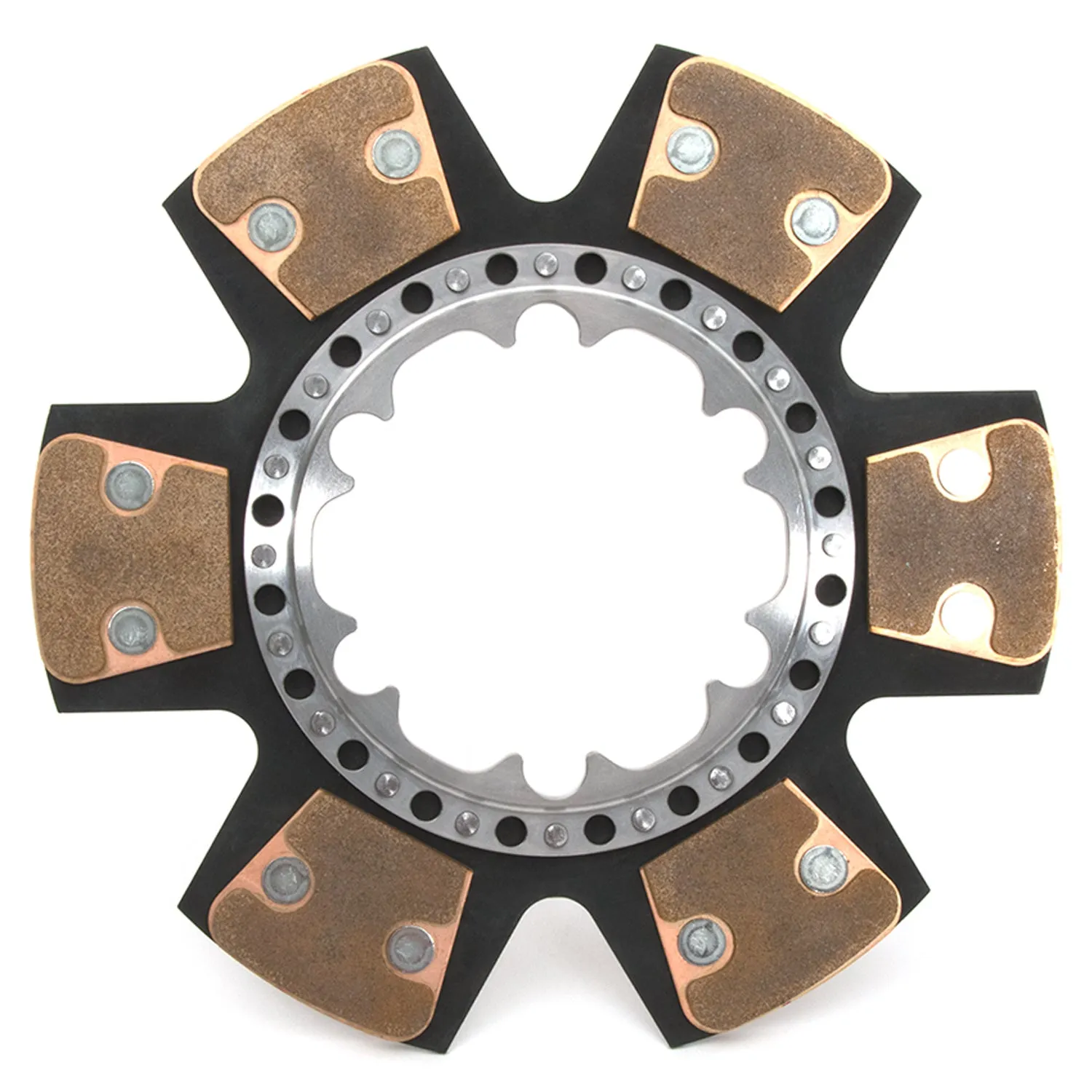

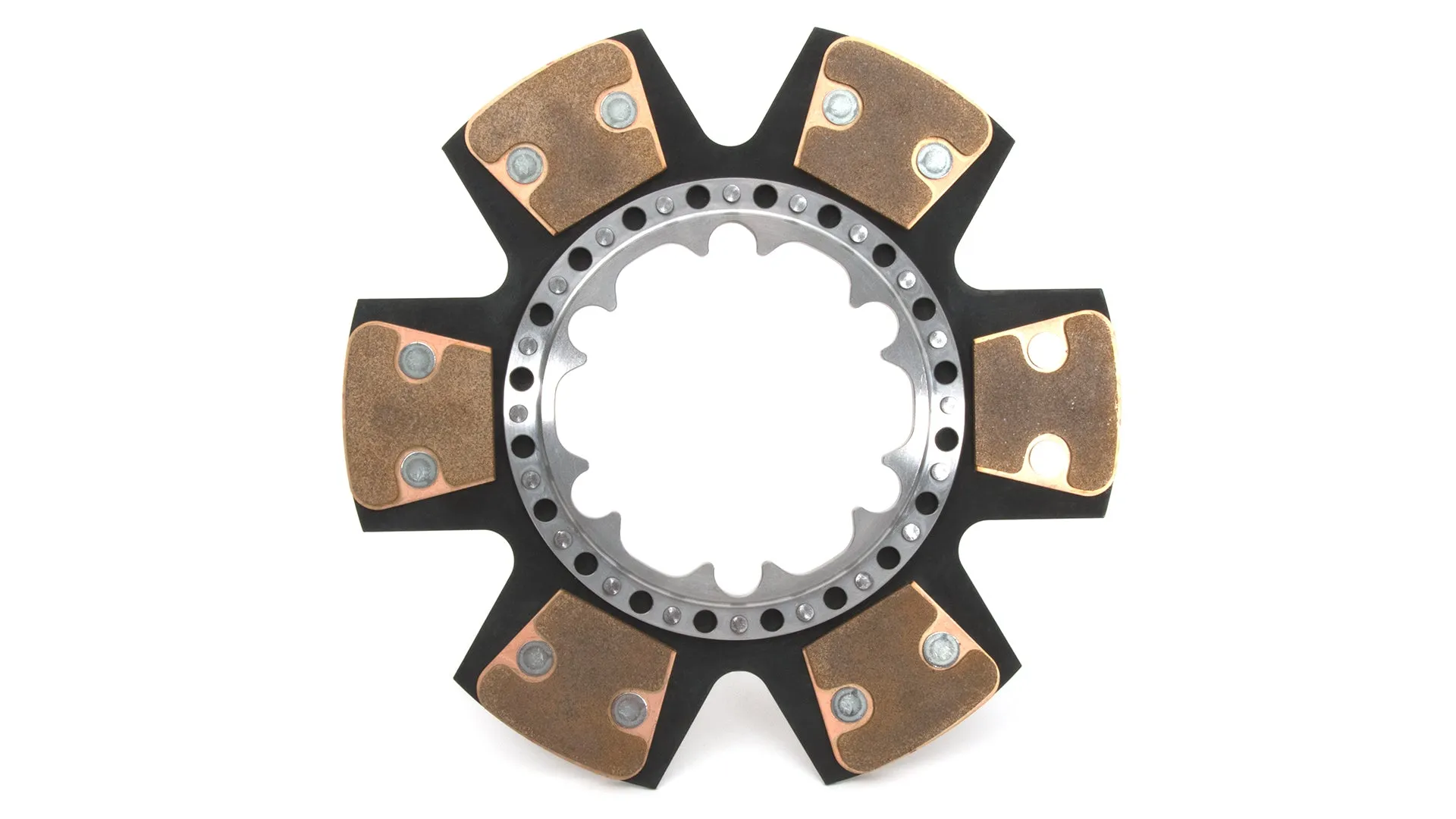

Disc Material	Cerametallic
Disc Type	6-Paddle
height	5.5
Input Shaft Diameter	1-1/8
Input Spline Quantity	26
Installed Height	2.760
length	18.0
LTL	N
Material	Billet Steel Flywheel / Nodular Iron Pressure Plate / Cerametallic Button Style Friction

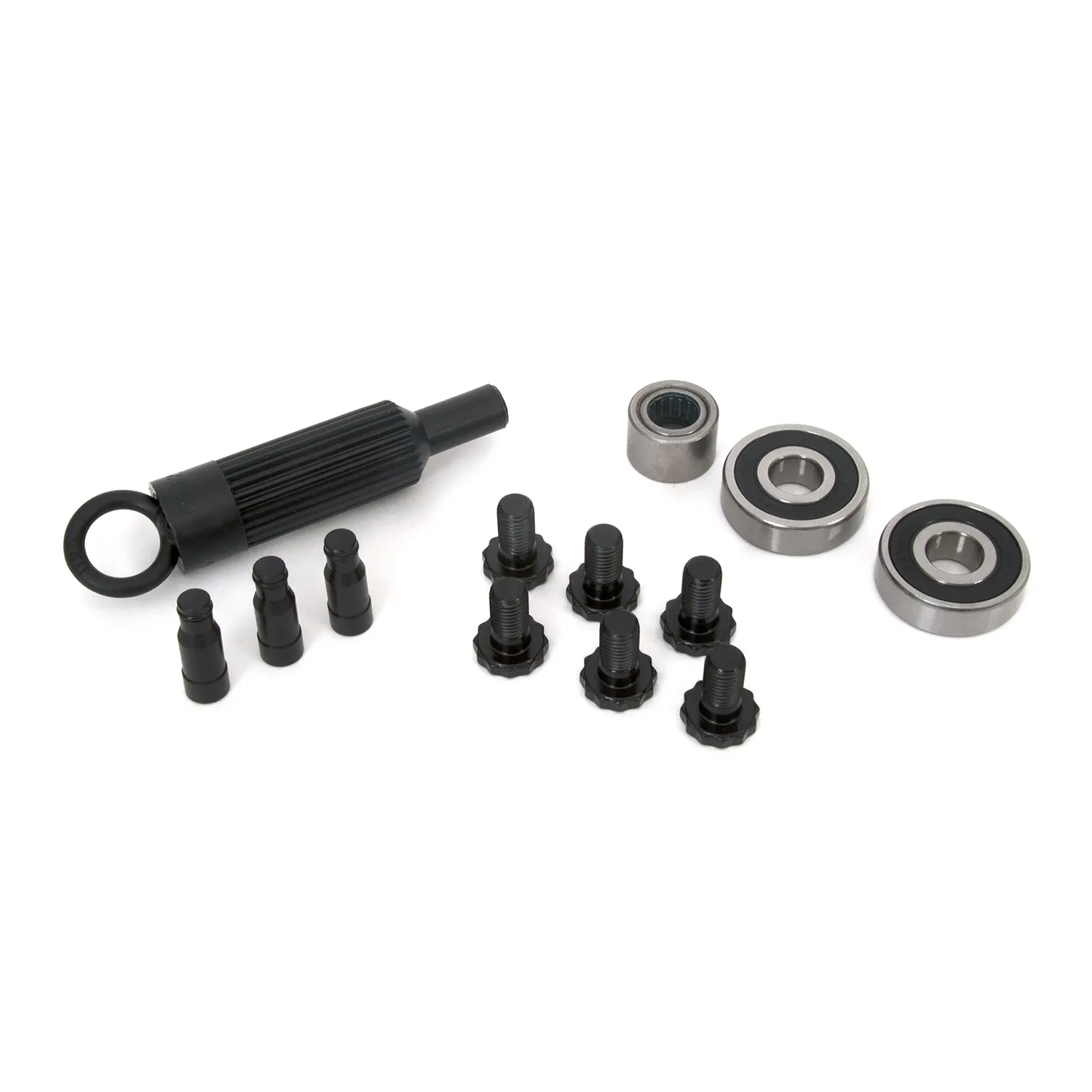

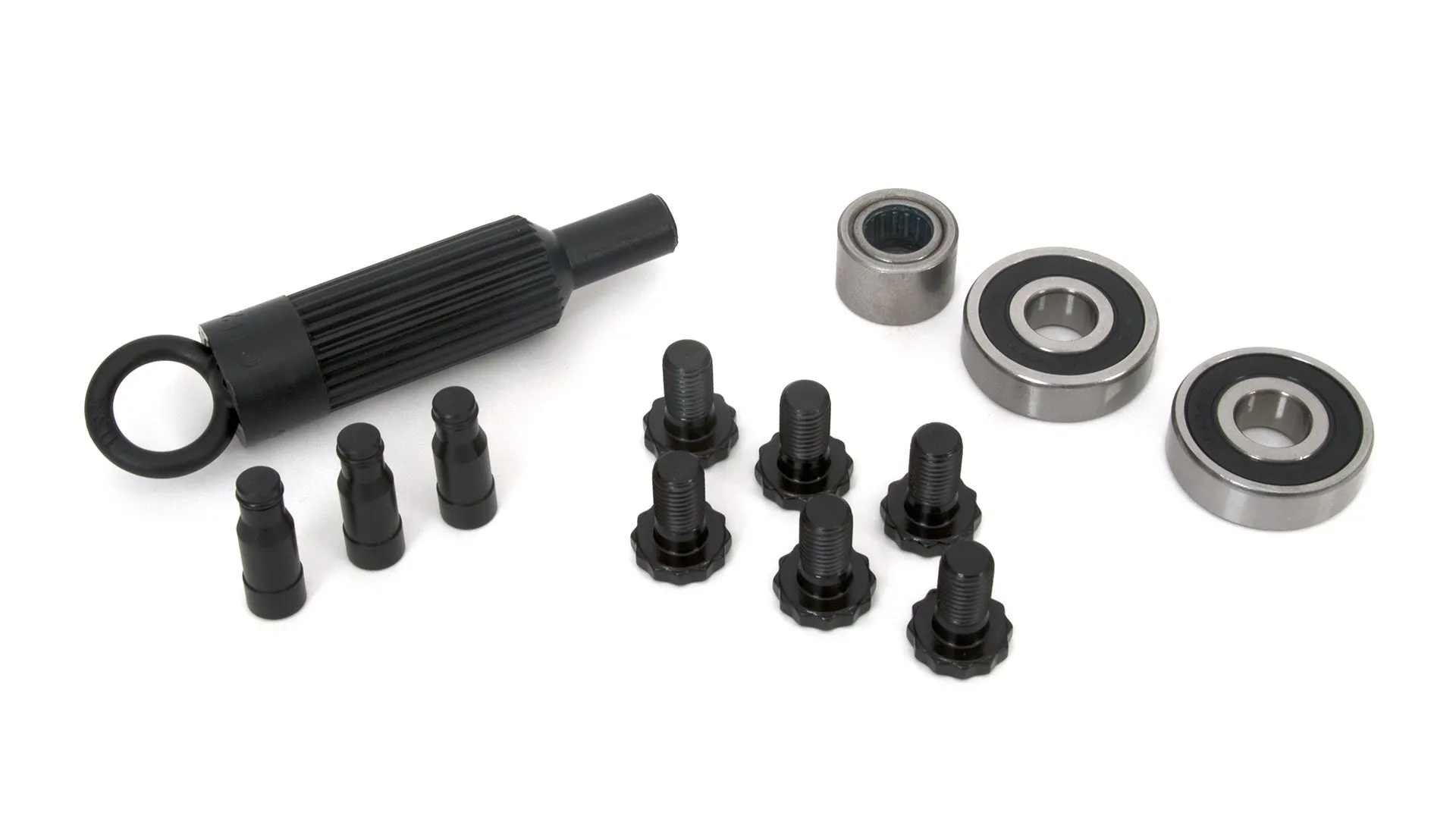

Mounting Hardware Included	Yes
Pilot Bushing Included	Yes
Title	PN: 415614842 - DYAD XDS 10.4, Clutch and Flywheel Kit
Tooth Quantity	168
Torque Capacity	1600
weight	53.6
width	18.0
