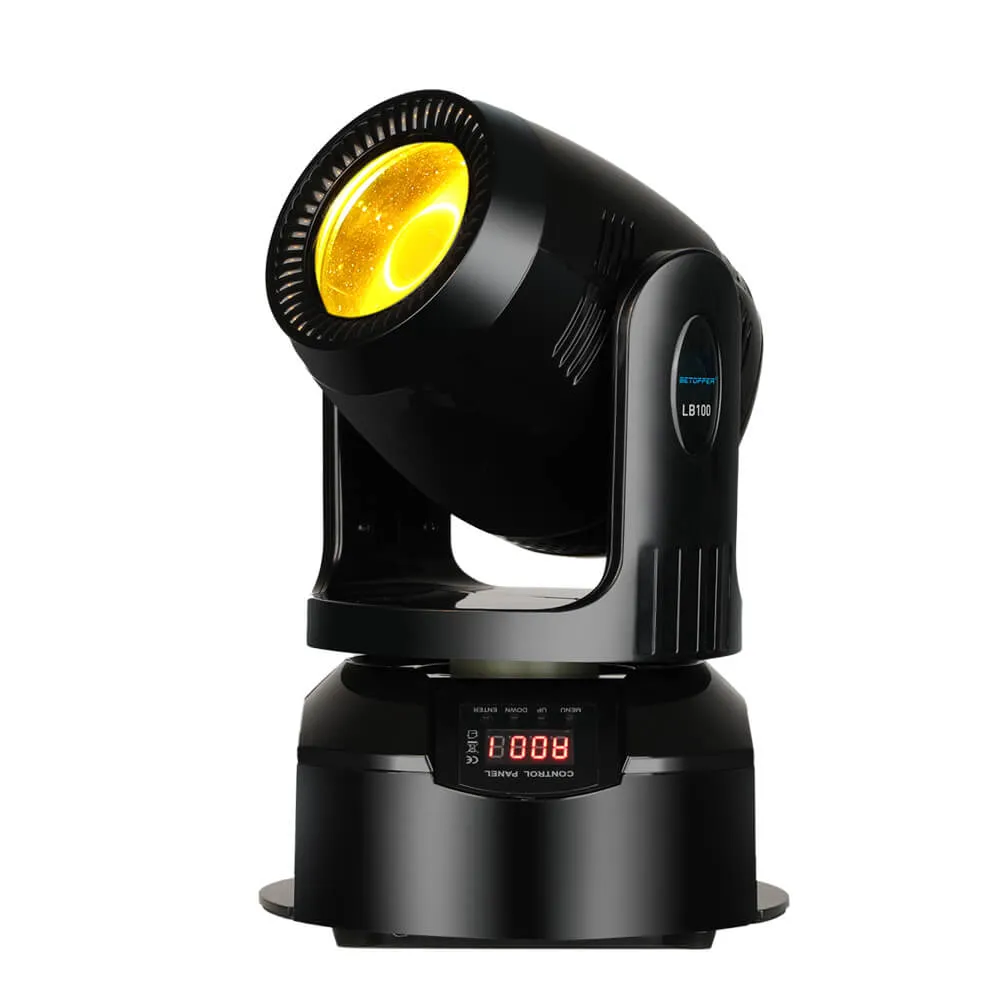

| Moving Head Light LB100 |
Color Temperature: 9910K
Lamp Luminous Efficiency(lm/w): 5.21
Color Rendering Index(Ra): 90
Working Lifetime(Hour: 50000
Luminous Efficacy: 5.21lm/w
Color Wheel: 7 colors white color
Prism: 8 facet prism, forward and reverse rotation
Light Source: High power 100W white LED
Product Size: 320*200*200mm
|
Model :LB100 |
|
100W LED Beam (Small steel gun) |
|
|
|
Product Features _____________ |
|
|
100W High brightness bulb _________________ Light Source:Hight power 100W White LED |
|

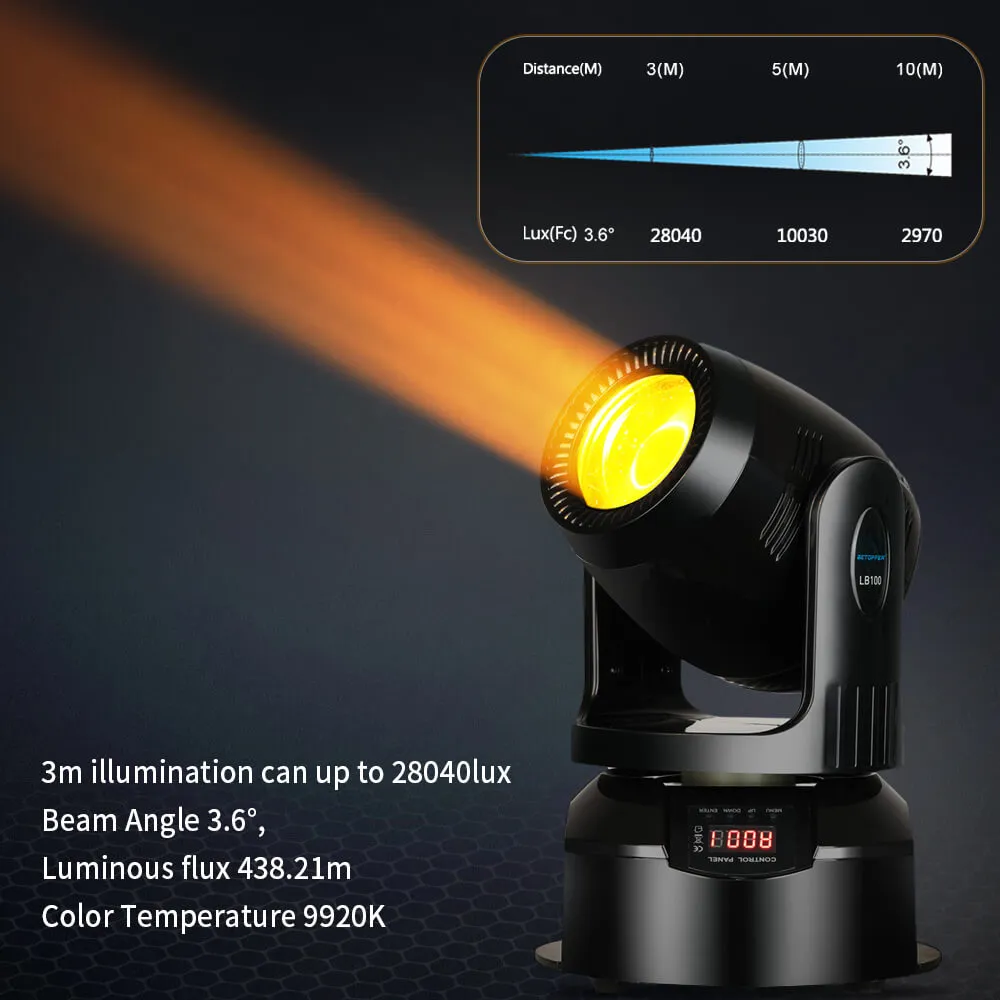

3m illumination
can up to 28040lux
_____________
|
Beam Angle 3.6°
Luminous flux 438.2lm
_____________
|
Color Temperature
9920K
_____________
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

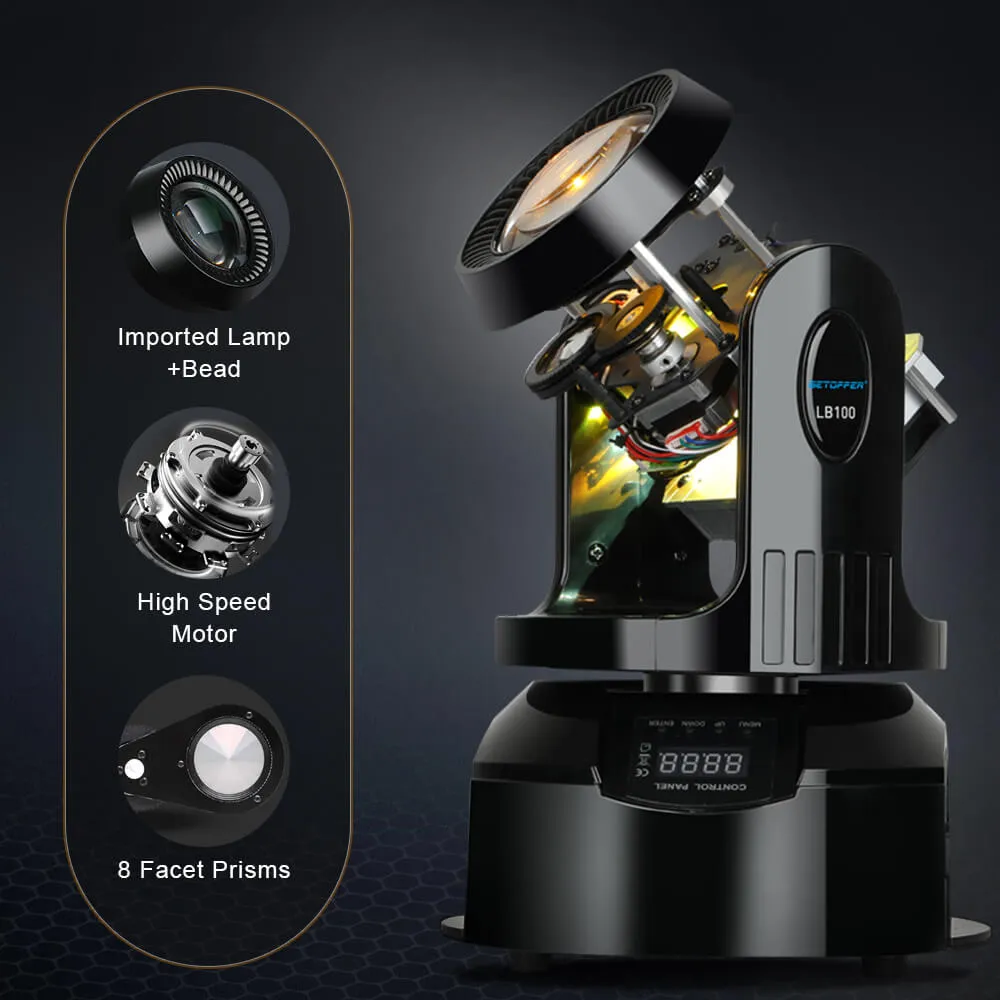

Lamp bead: _________ Imported beads are used for better |
|

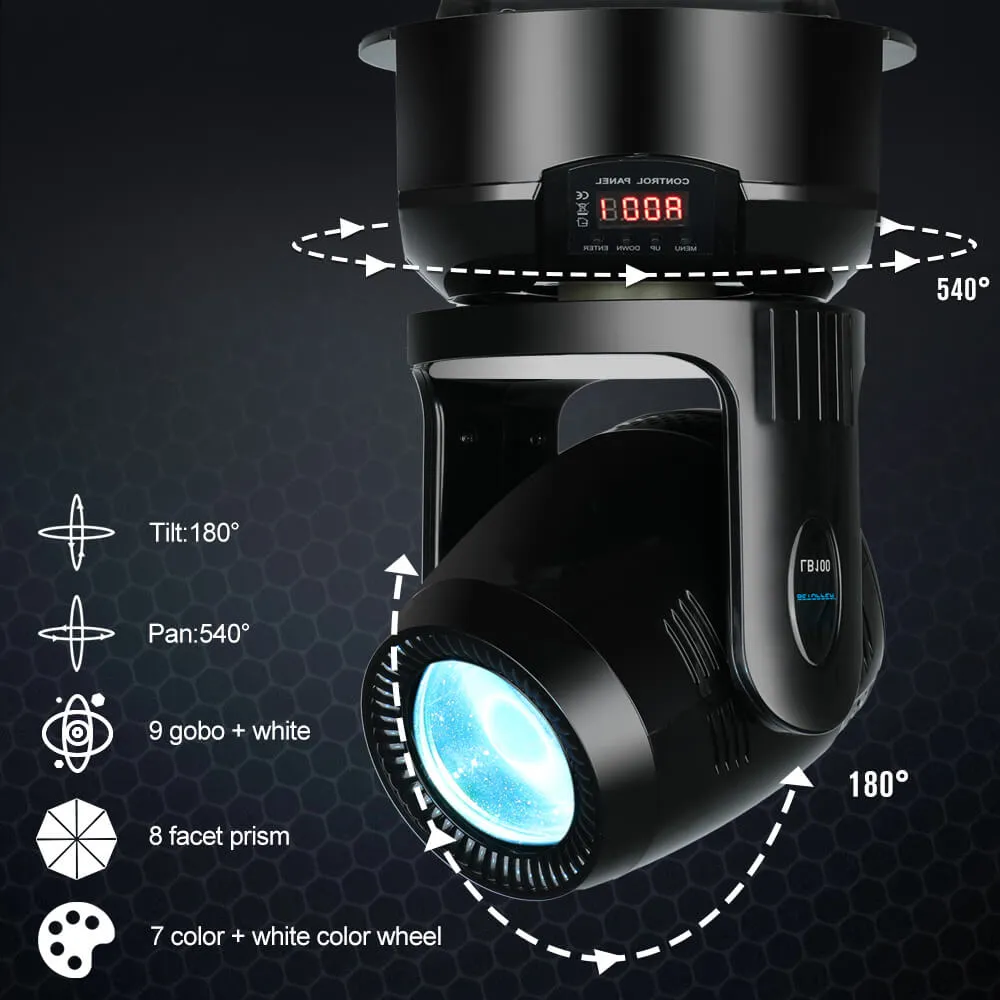

Movement Angle: _________ Operating angle:
pan 540° tilt 180°
|
|
|
|
Intelligent heat dissipation: _________ A wide range of comprehensive heat |
|
High speed motor: _________ Energy saving,
strong controllability,
Low noise and vibration.
|
|
|
|

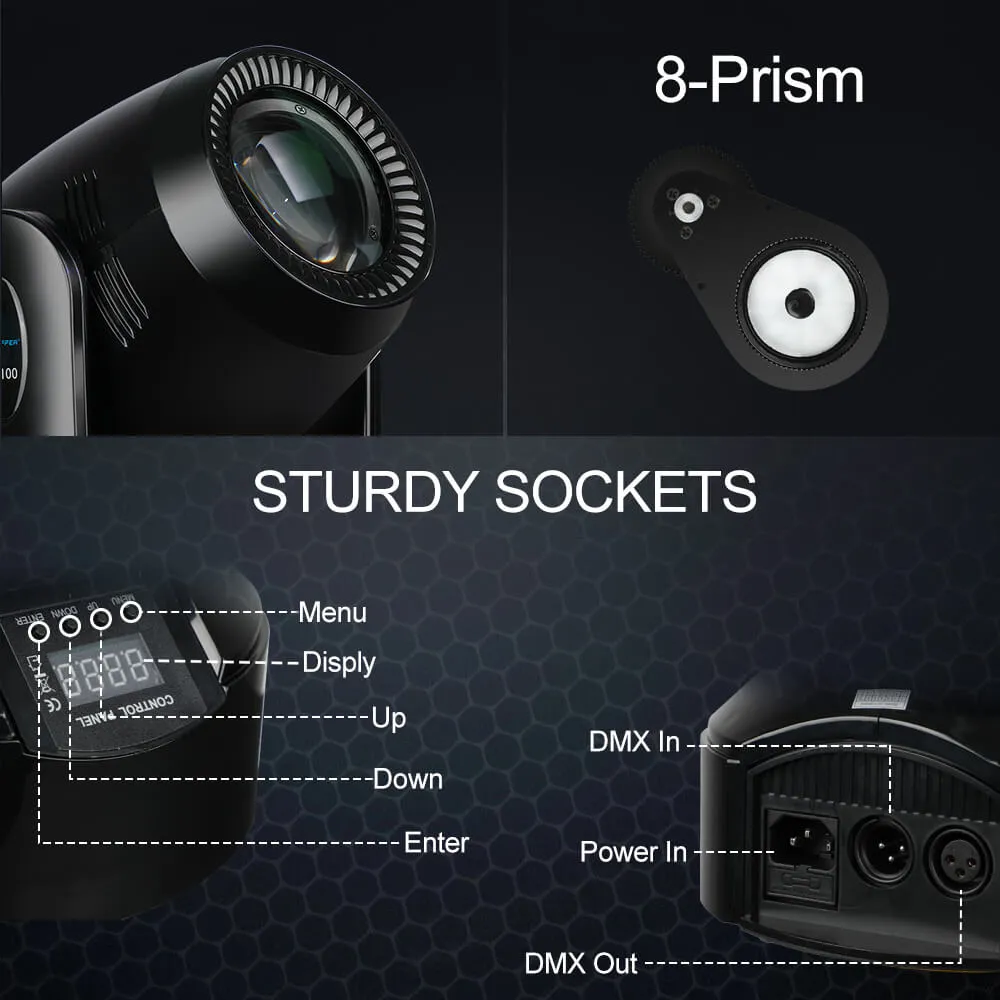

8 prisms: _________ To achieve from nothing, |
|
Digital display: _________ Adjustment is more convenient,
the value is more beautiful
and easy to understand.
|
|
|
|
Easy installation: _________ Can be installed in the open with a |
|
High quality power supply: _________ Good safety performance,
Long service life,
Anti-corrosion and wear-resisting,
Good flame retardancy.
|
|
|
|
|
|
|
Widely used in KTV, bars, clubs, discos, stage and other places
atmosphere lamp shaking beam spotlight color rotating lights LED pattern lights.
|
|
Product parameters |
|
|
Model : LB100 |
Luminance Flux : 438.2 lm |
|

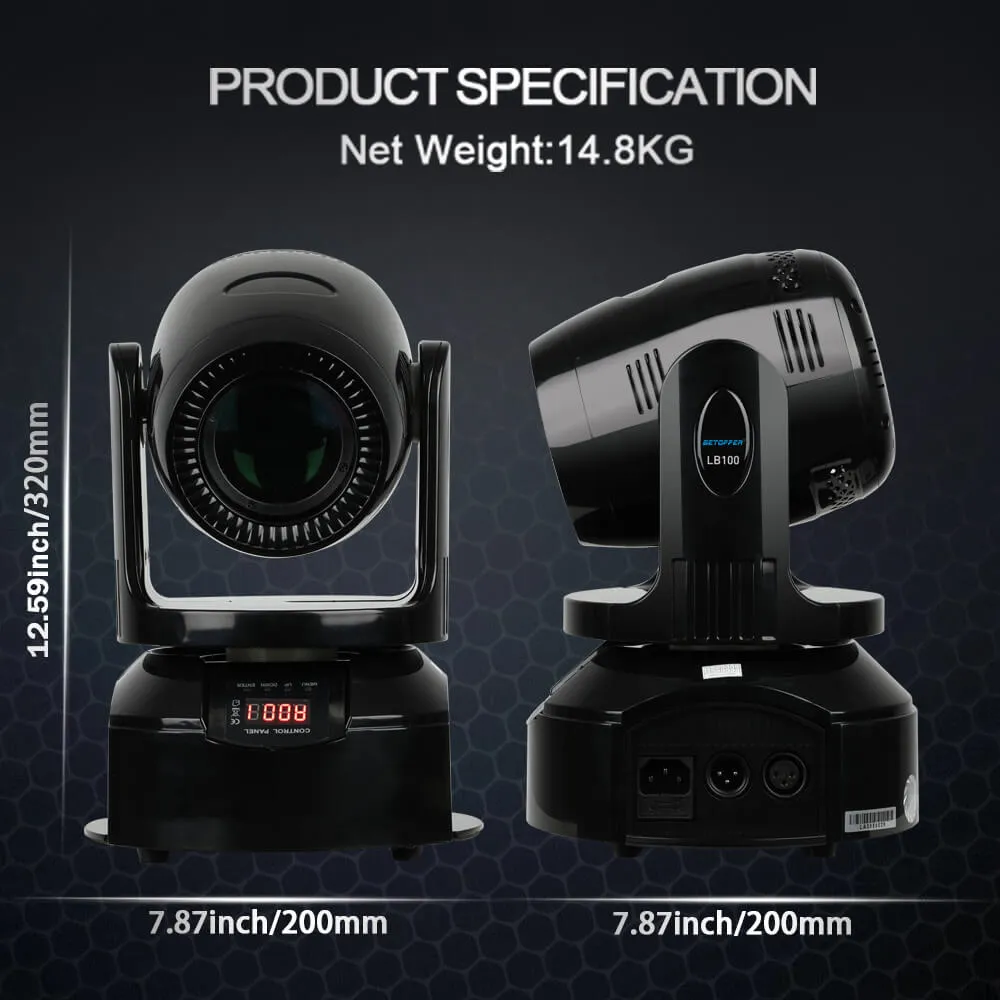

Size : 200*200*320mm |
Color : 7 color blank color |
|
Packing : 1pcs/4pcs |
Gobo : 8 Fixed gobo |
|
N.W / G.W: About 15.4kg / 17.9kg |
Channel : 12CH |
|
Power Supply : AC100-240V 50/60Hz |
3m illumination :28040lux |
|
Rated Power :120W |
Color rendering index: 67Ra |
|
Movement Angle : pan:540° Tilt : 180° |
Color rendering index: 67Ra |
|
Beam Angle : 3.6° |
Application: Stage wedding party bar Disco place |
|

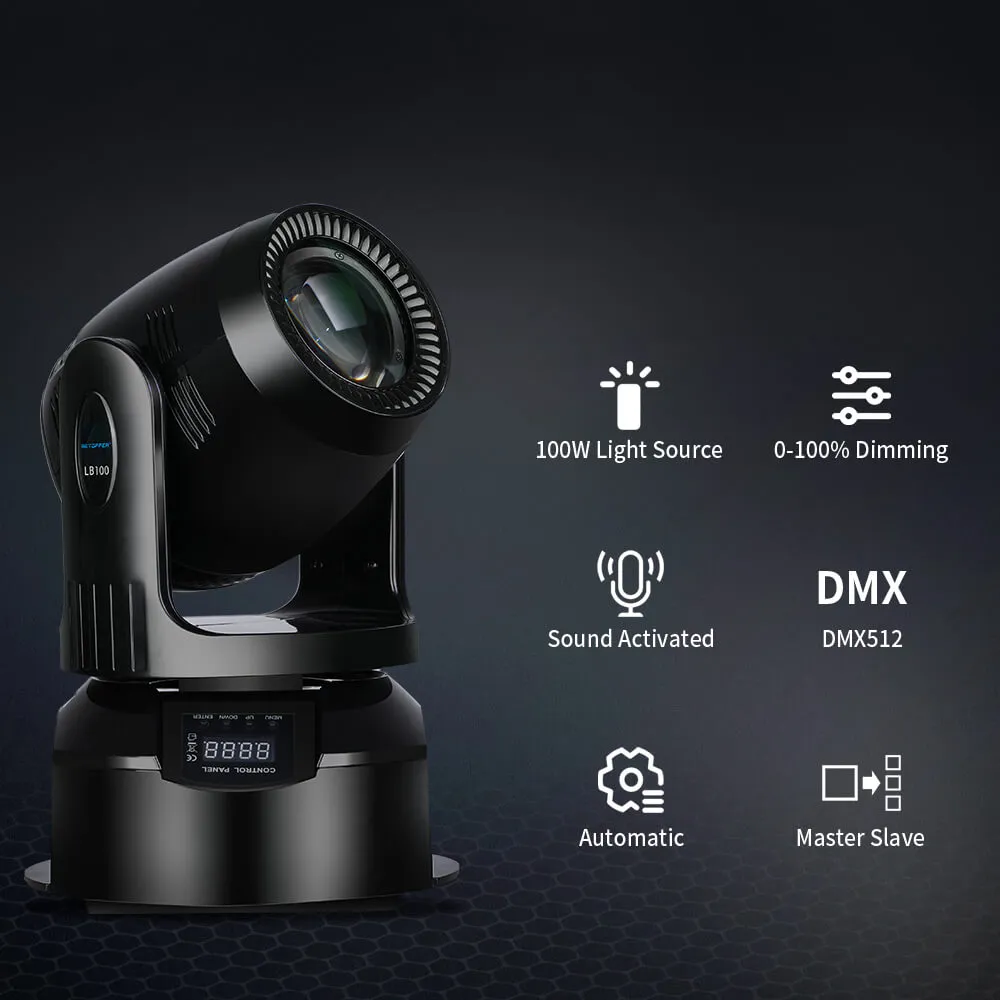

Control Model : Sound / Auto / DMX512 / Master-slave |
|
|
Power supply parameters |
|||
|
Input voltage |
Input current |
Input power |
Power factor |
|
100V / 60Hz |
1.546A |
103.8W |
0.676PF |
|
110V / 60Hz |
1.354A |
100.5W |
0.678PF |
|
120V / 60Hz |
1.236A |
98.6W |
0.674PF |
|
220V / 50Hz |
0.722A |
96.4W |
0.614PF |
|
230V / 50Hz |
0.692A |
95.5W |
0.601PF |
|
240V / 50Hz |
0.67A |
95.2W |
0.602PF |
|
Lamp high&low temperature testing |
||
|
/ |
Ambient temperature |
|
|
-25℃ |
40℃ |
|
|
Whole machine power |
83.75 W |
83.75 W |
|
Light flux |
438.2 lm |
438.2 lm |
|
Color temperature |
9920 K |
9920 K |
|
Color rendering index |
67 Ra |
67 Ra |
|
Waves length |
478.7 nm |
478.7 nm |
|
|
